Purpose Statement
The Field Selection setting within the Hydrant Setup allows administrators to define which identifier appears as the primary header for hydrants and control which data fields are displayed to end users. This helps standardize hydrant identification and ensures responders see only relevant information.
Background Information
Within the Hydrant Module, each hydrant record can be identified by different types of IDs depending on department preference and workflow. Additionally, hydrant records may contain multiple data fields, not all of which are necessary for daily operations.
This feature allows departments to:
Choose a consistent hydrant identifier (header)
Customize visible data fields
Improve map readability across Responder, Pre-Plan, and Hydrant maps
Reduce clutter from unused or empty fields
Required Permissions
Administrator access
Hydrant Module configuration permissions
Ability to edit system setup/settings
Video
Step-by-Step Guide

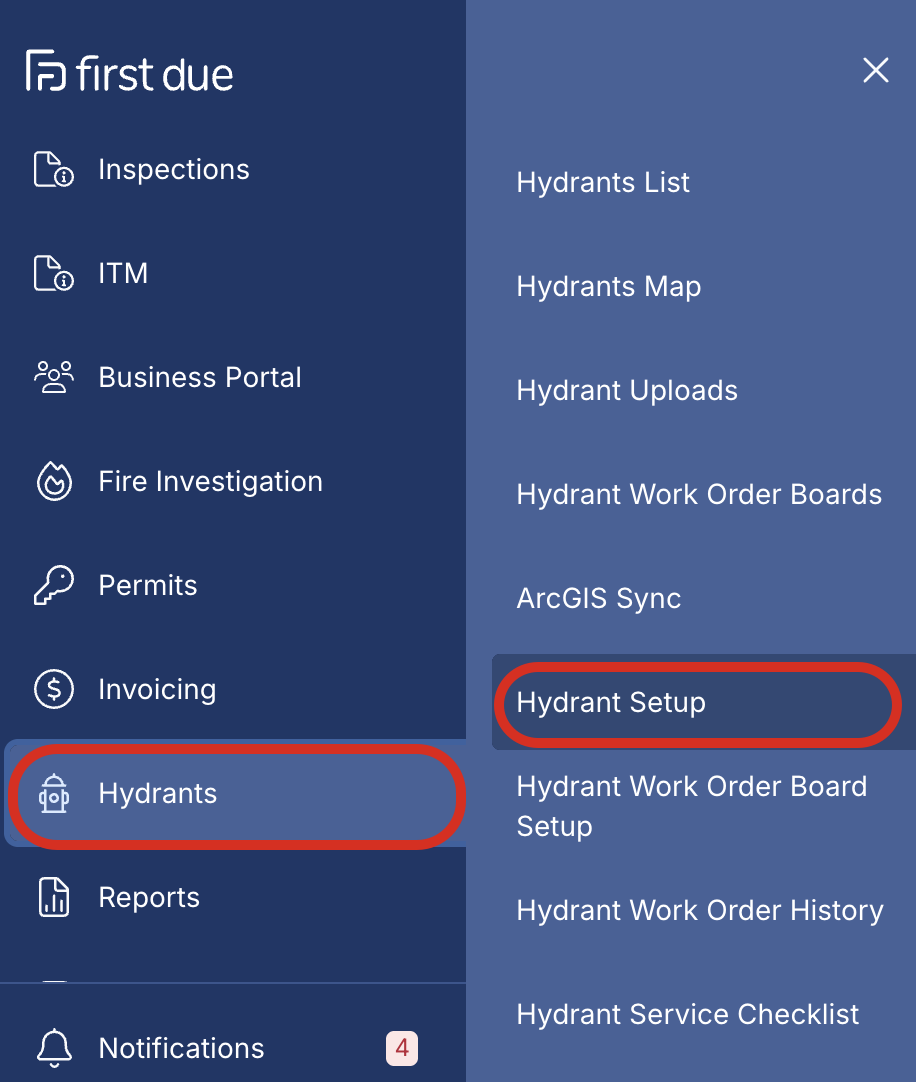

Step 1: Navigate to Hydrant Setup
Go to Hydrant Module
Select Hydrant Setup

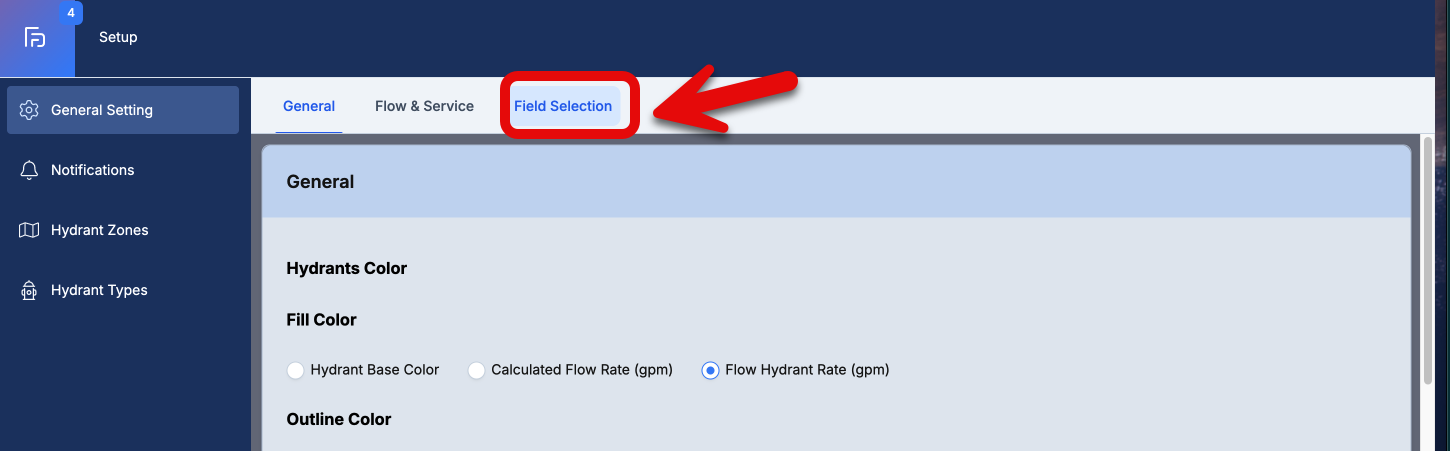

Step 2: Access Field Selection
Click on Field Selection

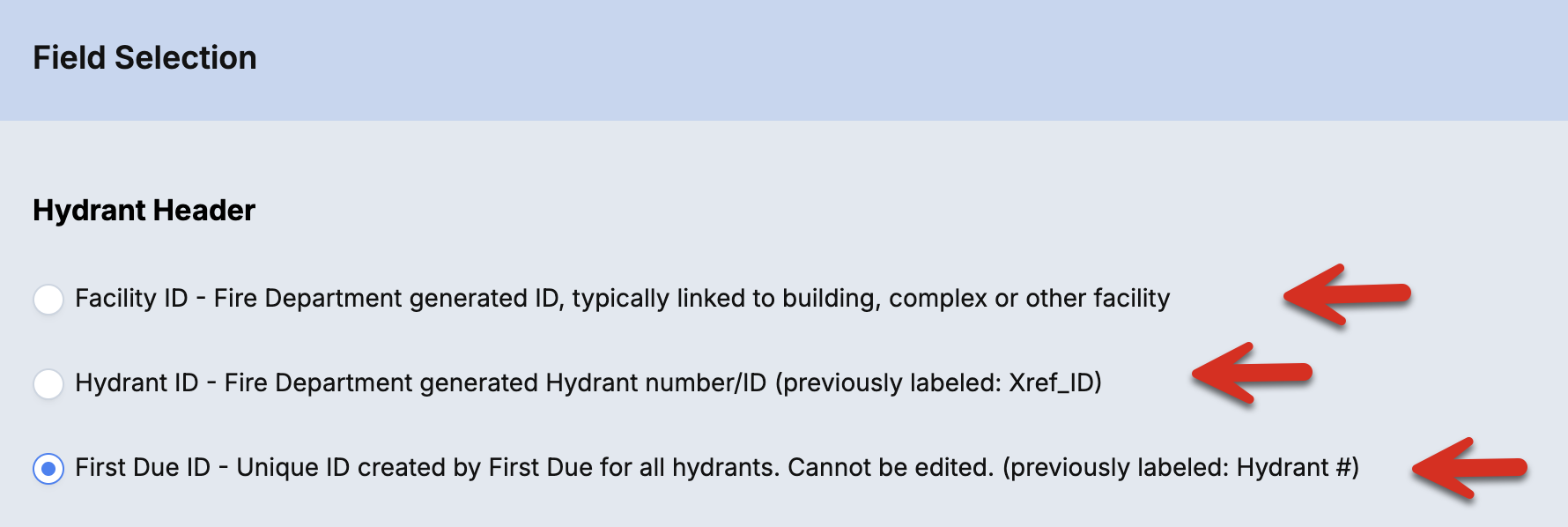

Step 3: Choose Hydrant Header Field
Select the preferred primary identifier for hydrants:
Facility ID
Typically a department-generated ID
Often associated with buildings, complexes, or facilities
Hydrant ID
Department-assigned hydrant number or identifier
First Due ID
System-generated unique ID for each hydrant
Note: This field cannot be edited
Previously labeled as “Hydrant Number”

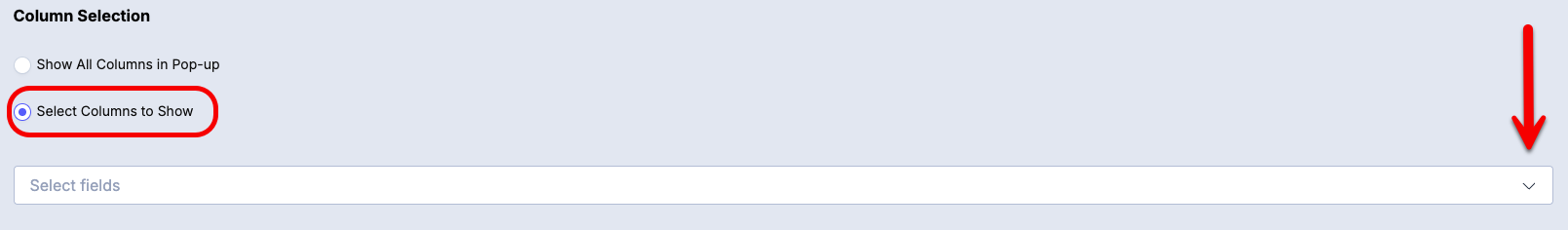

Step 4: Configure Field Display Options
Choose how hydrant data is displayed:
Enable Display All Fields to show all available data
Or toggle off to manually select specific fields
If manually selecting:
Check the fields you want displayed
Only fields with available data will appear in the system
Step 5: Save Configuration
Save changes to apply updates across:
Responder Map
Pre-Plan Map
Hydrant Map
Best Practices
Select a consistent identifier (Hydrant ID or Facility ID) that aligns with department standards
Avoid using First Due ID unless necessary, since it cannot be edited
Only enable fields actively used by your department
Regularly review field selections to ensure relevance
Minimize clutter by removing unused or empty fields
Troubleshooting & FAQs
Q: Why are some fields not displaying on the map?
A: Fields will only display if they are selected and contain data.
Q: Can I edit the First Due ID?
A: No, the First Due ID is system-generated and cannot be modified.
Q: Why does my hydrant view look cluttered?
A: Too many fields may be enabled. Disable unused fields in Field Selection.
Q: Do these changes affect all users?
A: Yes, changes apply system-wide across all map views.
