Purpose Statement
This article explains how to create and manage Hydrant Zones within the Hydrants module. Hydrant Zones allow departments to organize hydrants into groups for easier management, inspections, and operational assignments.
Background Information
Hydrant Zones allow departments to group hydrants based on operational needs such as:
Station coverage areas
Shift responsibilities
Geographic districts
Inspection assignments
By organizing hydrants into zones, departments can more efficiently assign hydrant inspections, track responsibilities, and manage hydrant infrastructure across their jurisdiction.
Zones act as a classification system and hydrants can later be assigned to these zones through the Hydrant List.
Required Permissions
To create or manage Hydrant Zones, users typically need:
Hydrants Module Access
Hydrant Setup permissions
Create/Edit Hydrant Zones
If you cannot see the Hydrant Setup menu or the Hydrant Zones section, contact your system administrator to review your role permissions.
Video
Step-by-Step Guide

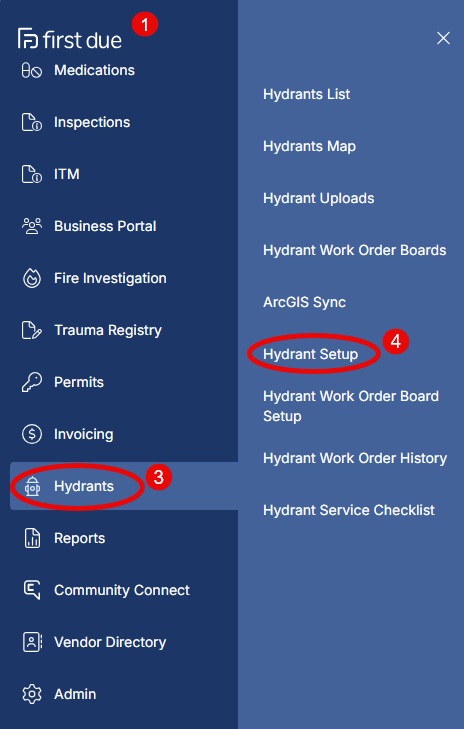

1. Open the Hydrants Module
Click the First Due icon in the upper-left corner of the screen.
Scroll down the module stack.
Select the Hydrants module.
Within the Hydrants module, select Hydrant Setup.
2. Open Hydrant Zones

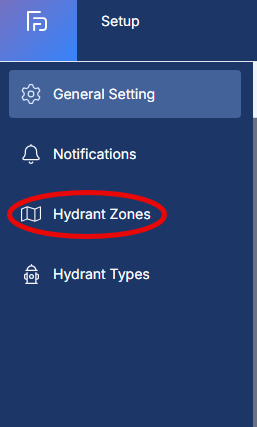

In the left-hand column, select Hydrant Zones.
3. Create a New Hydrant Zone

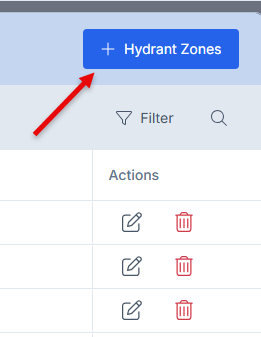

In the upper-right corner, click Add Hydrant Zone.
Enter the name of the hydrant zone.
Click Create.

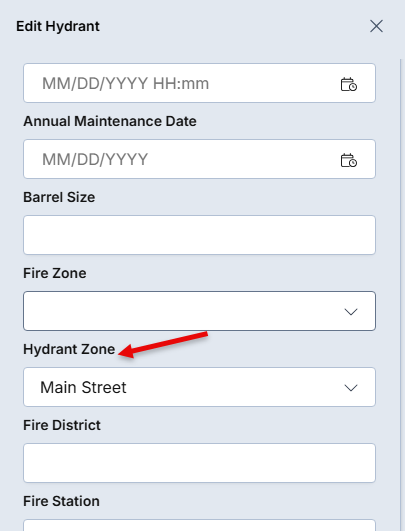

4. Assign Hydrants to the Zone
Navigate to the Hydrant List.

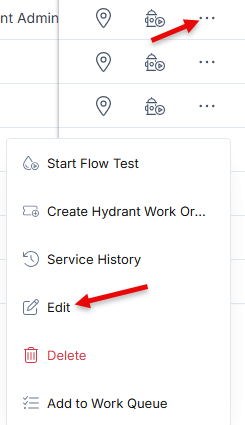

Edit individual hydrants.
Assign the hydrant to the appropriate Hydrant Zone.
5. Manage Existing Zones
Once zones are created, you can:
Edit the zone name
Delete the zone if it is no longer needed
View the list of existing zones within the Hydrant Zones page
6. Adjust Page Size or Export Data
At the bottom of the Hydrant Zones page, you can:
Adjust the page size to display more records.
Export the list to a CSV file for reporting or data management.
Best Practices
Create zones based on logical operational groupings such as stations or districts.
Maintain clear and consistent naming conventions.
Periodically review zones to ensure hydrants remain assigned to the correct areas.
Use zones to simplify inspection assignments and reporting.
Avoid:
Creating duplicate zones with similar names
Leaving hydrants unassigned if zones are used for inspection workflows
Deleting zones that are actively used in inspection processes
Troubleshooting & FAQs
Q: I cannot see the Hydrant Zones option.
A: Verify that you have Hydrant Setup permissions or administrator access.
Q: Can hydrants belong to more than one zone?
A: This depends on your department’s configuration. Most workflows assign hydrants to a single zone.
Q: How do I assign hydrants to a zone?
A: Edit the hydrant from the Hydrant List and select the appropriate Hydrant Zone.
Q: Can I export my hydrant zones list?
A: Yes. Use the CSV export option at the bottom of the Hydrant Zones page.
