Purpose Statement
To explain the setup and functionality of Station View within the Responder Module.
Station View provides a “First Due Station Monitor” that can be configured as a static display. It automatically presents new incident information as it becomes available, along with structure details, responding units, responder statuses, mapping, and Shift Board information.
This feature supports operational awareness in stations, watch desks, and shared command environments.
Background Information
In response to department requests for a dedicated display solution, First Due developed Station View as a standalone monitoring option within the Responder Module.
Station View is commonly used for:
Station bay monitors
Watch desk desktops
Command display screens
Shared operational dashboards
To maintain security and proper system usage, it is strongly recommended to:
Create a unique user account for each station or monitor
Create a unique role with limited permissions specific to Station View accounts
Important Note:
Important: Station View only displays the Dispatch Units and Dispatch Incident Types configured within the user’s Notification (Dispatch Turnout) Settings. If settings are restricted, incidents displayed will also be restricted.
Required Permissions
The Station View account should have:
Appropriate Dispatch Turnout Notification Settings
Scheduling – Access Shift Board (if Shift Board display is desired)
Pre-Planning--Pre-Plans - Read
Best practice:
Assign a dedicated Station View Role
Restrict access to other modules
Configure Dispatch Turnout settings to match the desired display behavior
Permissions are managed under Admin > User Roles.
Video
Step-by-Step Guide
1. Create a Dedicated Station Account (Recommended)

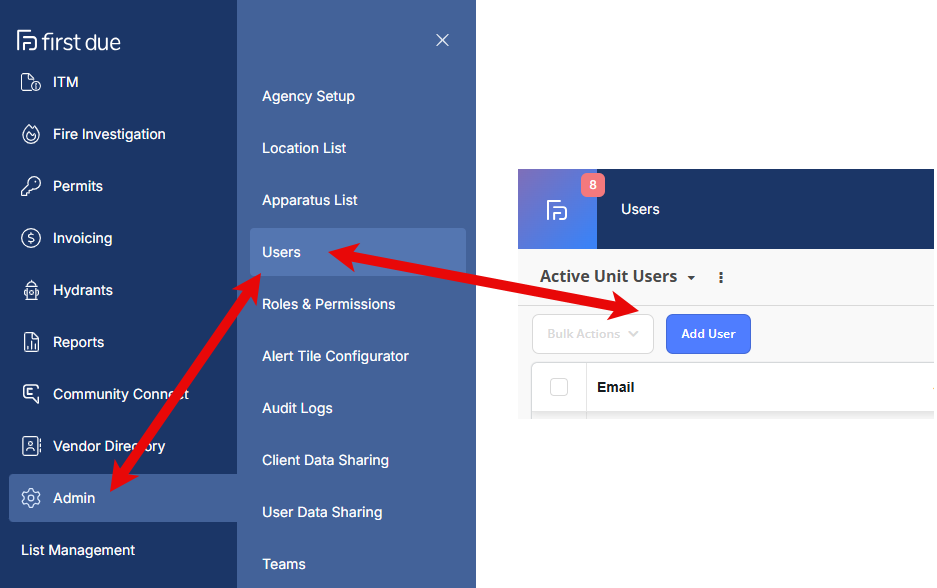

Navigate to Admin > Users.
Select Add User & create a unique account for the station or display location.
Assign a dedicated Station View Role with limited permissions.

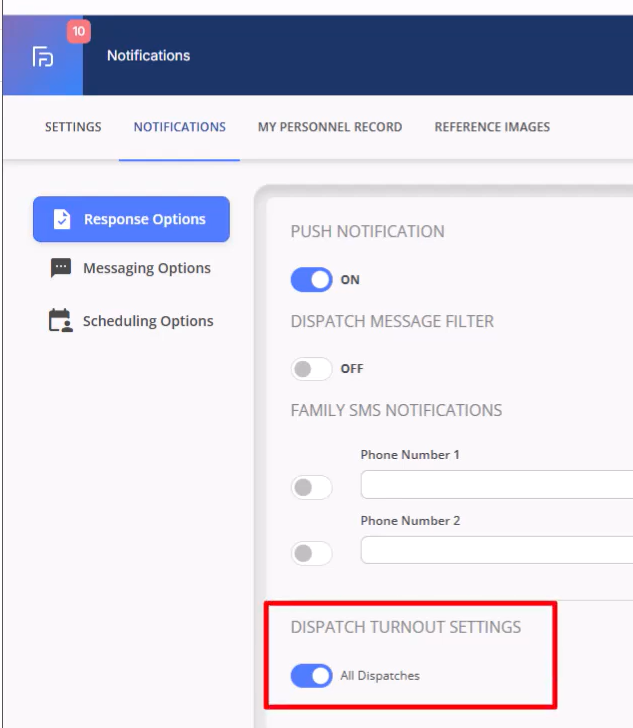

2. Configure Notification (Dispatch Turnout) Settings
Open the Account Profile for the Station View user.
Navigate to Notifications & Review Dispatch Turnout Settings.
Select the appropriate turnout option (recommended: All Dispatches unless a filtered display is desired).
Save changes.

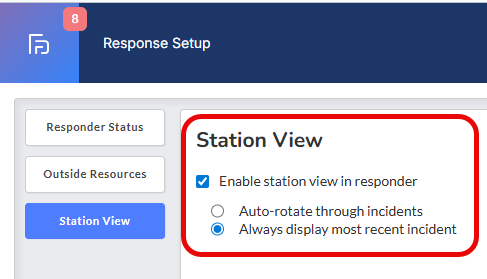

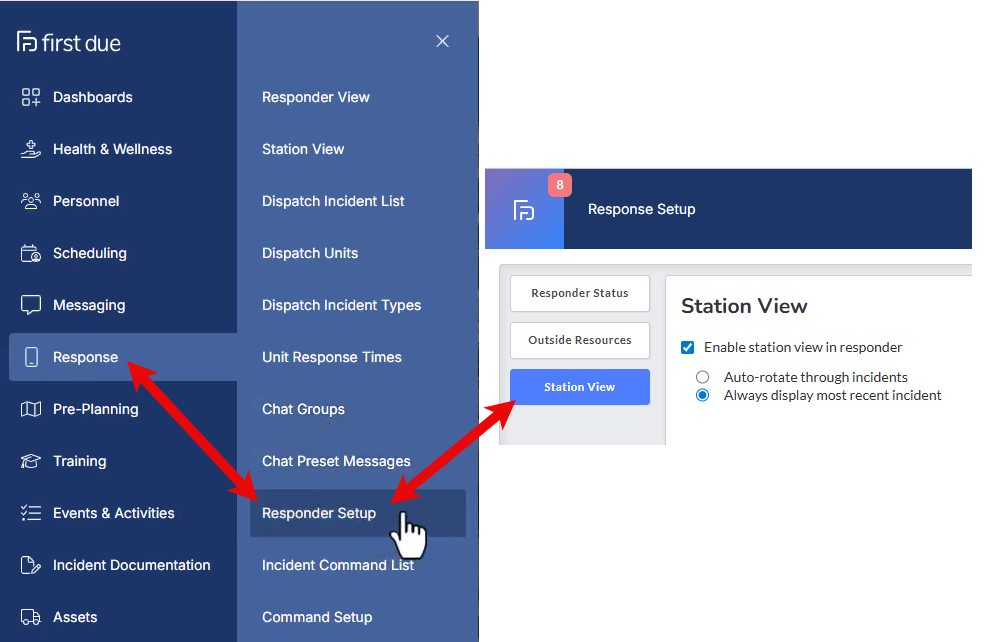

3. Enable Station View
Log in using the Station View account.
Navigate to:
Response > Responder Setup > Station ViewFrom the Station View menu, select:
Enable station view in responder.
4. Select Station View Display Mode
There are two (2) available options:
Option 1: Auto-Rotate Through Incidents
Begins at the incident list.
Displays the most recent incident information.
After approximately 15 seconds, proceeds to the next most current incident.
If a new incident is received, it immediately displays the new incident and associated details.
Best for stations managing multiple active incidents simultaneously.
Option 2: Always Display Most Recent Incident
Begins at the incident list.
Displays the most recent incident information.
Remains displayed until a new incident is received.
When a new incident occurs, the display updates automatically.
Best for departments wanting a focused, single-incident display.

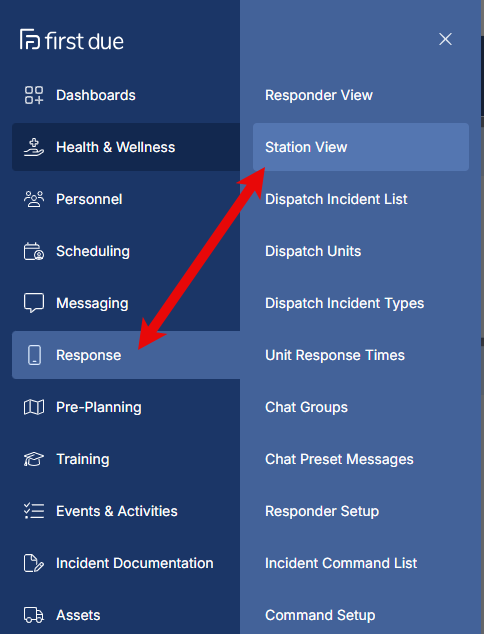

Access Station View
Navigate to:
Response > Station View
Station View will now display in full-screen format for monitor use.

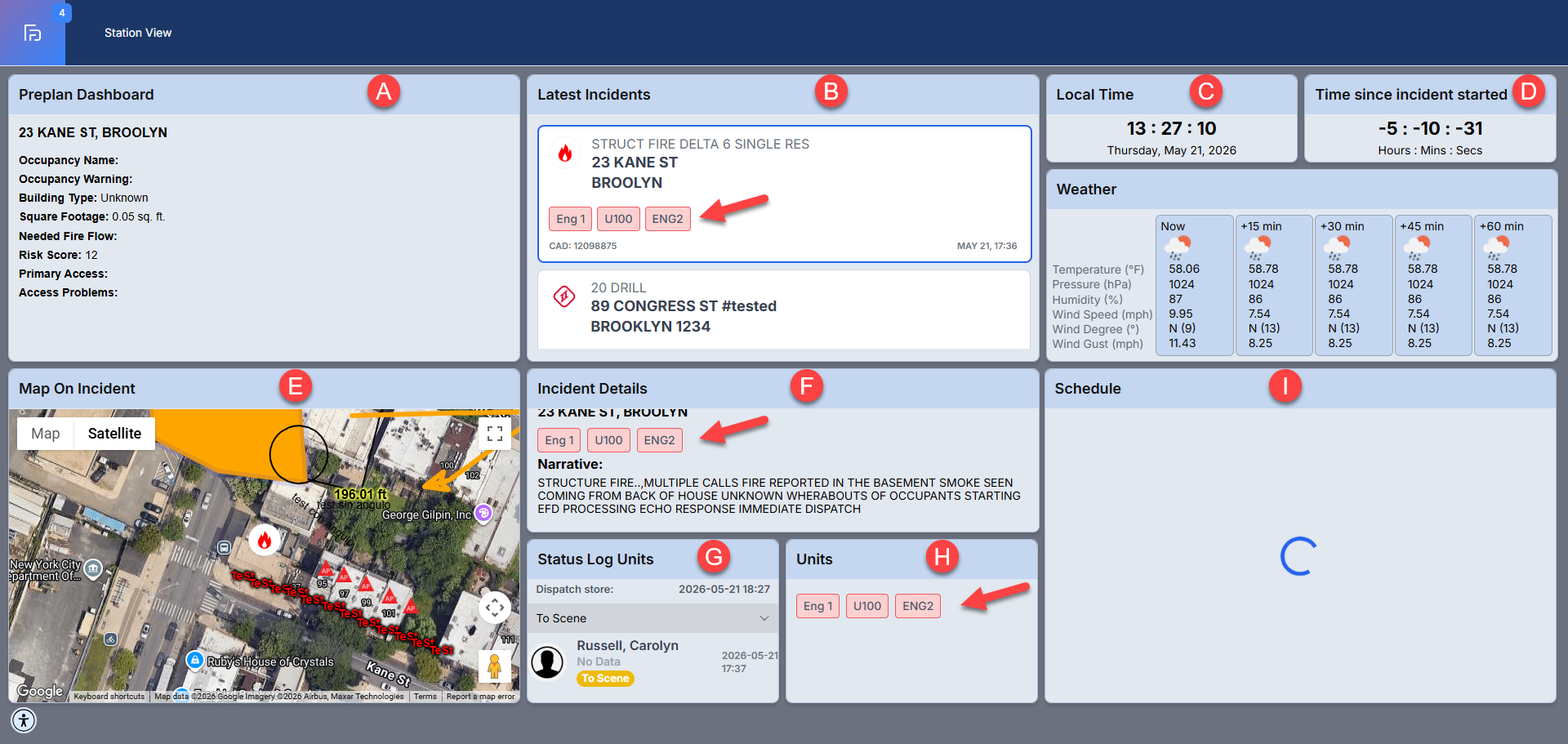

Station View Layout Overview
The Station View screen includes the following sections:
A. Preplan Dashboard
A summary of the structure involved in the currently displayed incident.
B. Latest Incidents
List of current incidents. A blue box highlights the incident currently being displayed.
C. Local Time
Displays the current local time.
D. Time Since Incident Started
Shows elapsed time since the currently displayed incident began.
E. Map on Incident
Displays a map of the structure or incident location.
F. Incident Details
Call notes and relevant information for the currently displayed incident.
G. Status Log Units
Displays responder statuses for the currently displayed incident.
Visible only if Firefighter Statusing is active.
H. Units
Units assigned to the currently displayed incident.
I. Schedule
A scrolling view of the Shift Board from the Scheduling Module.

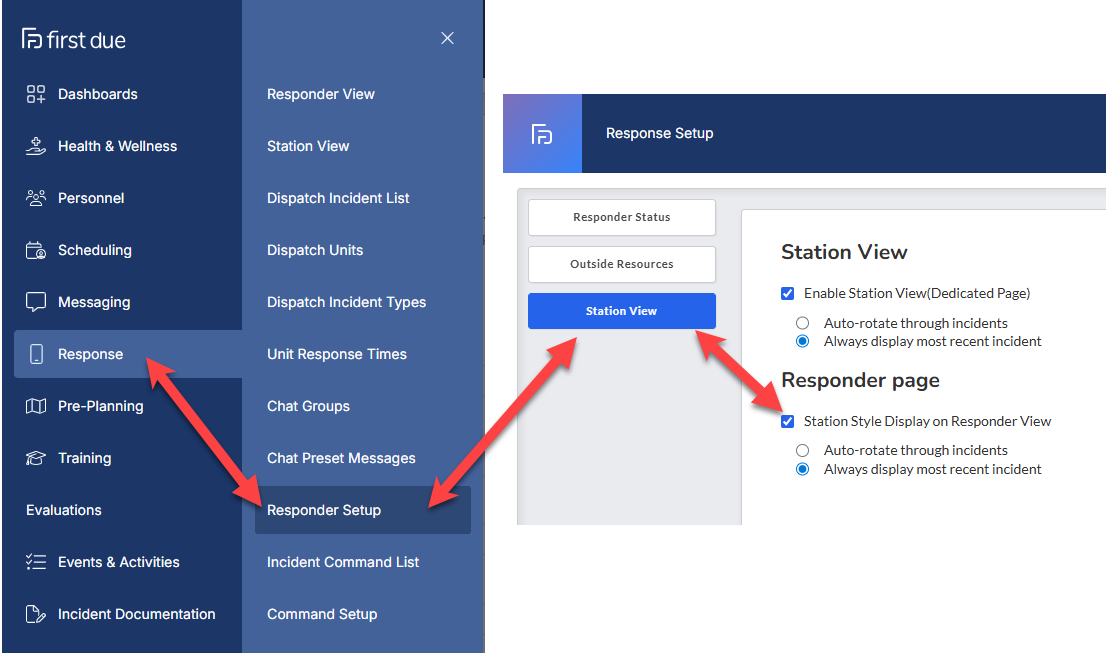

5. Enable Responder Page Station View
Log in using the Station View account.
Navigate to:
Response > Responder Setup > Station ViewFrom the Station View menu, select:
Enable Responder Page in Station View.
6. Select Responder Page Station View Display Mode
There are two (2) available options:

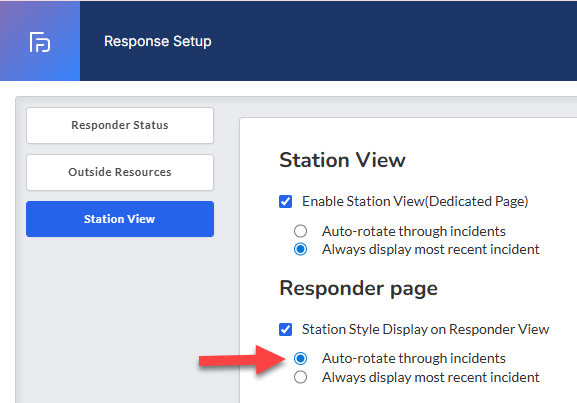

Option 1: Auto-Rotate Through Incidents
Begins at the incident list.
Displays the most recent incident information.
After approximately 15 seconds, proceeds to the next most current incident.
If a new incident is received, it immediately displays the new incident and associated details.
Best for stations managing multiple active incidents simultaneously.

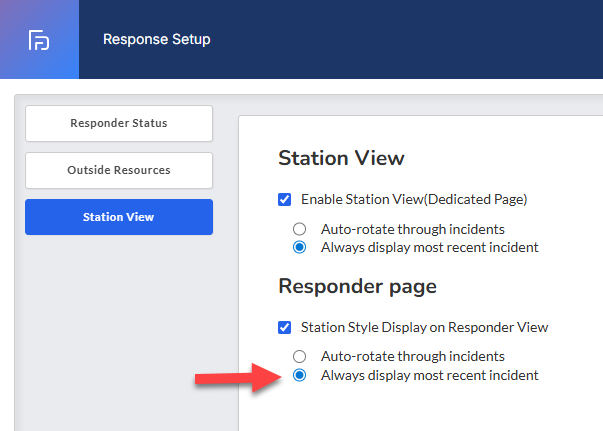

Option 2: Always Display Most Recent Incident
Begins at the incident list.
Displays the most recent incident information.
Remains displayed until a new incident is received.
When a new incident occurs, the display updates automatically.
Best for departments wanting a focused, single-incident display.

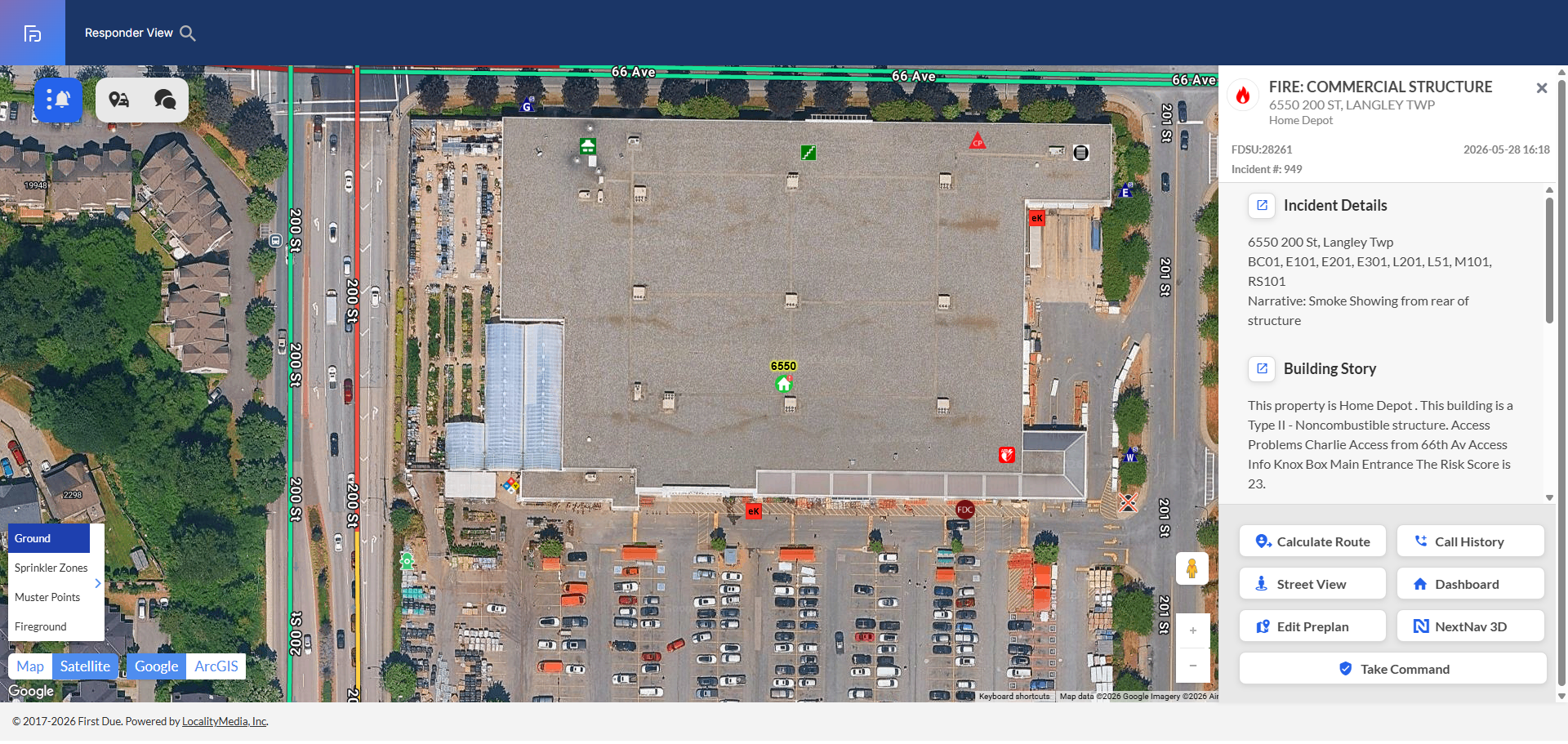

Access Responder Page Station View
Navigate to:
Response > Responder View
Responder Page Station View will now display in full-screen format for monitor use.
Best Practices
Create a separate account per station or monitor.
Restrict permissions to prevent unintended system access.
Set dispatch turnout to All Dispatches unless a filtered display is required.
Confirm Scheduling and Firefighter Statusing modules are enabled if those sections are desired.
Mount monitors in high-visibility operational areas.
Periodically verify the account remains logged in and connected.
Troubleshooting & FAQs
Q: Why are some incidents not appearing in Station View?
A: Review the account’s Dispatch Turnout Notification Settings. Station View only displays selected dispatch units and incident types.
Q: Why is the Shift Board not visible?
A: Ensure the Scheduling Module is enabled and the account has view permissions.
Q: Why are responder statuses not displaying?
A: Confirm Firefighter Statusing is active for your department.
Q: Can Station View be customized?
A: Currently, there is no ability to customize the appearance or layout of Station View. First Due is actively working on enhancements and expanded customization options.
Q: Can Station View push data back to CAD?
A: No. Station View is display-only.
