Purpose Statement
Web Responder is First Due's comprehensive browser-based response interface that provides dispatchers, incident commanders, and responding personnel with real-time incident information, mapping capabilities, and communication tools. This module serves as the central hub for viewing active incidents, accessing pre-plans and occupancy data, tracking unit locations, communicating via chat, and managing incident response from initial dispatch through resolution. Web Responder consolidates critical information into a single interface to support effective decision-making and situational awareness during emergency operations.
Background Information
Web Responder is designed to provide emergency responders with immediate access to critical incident information through a web browser, eliminating the need for specialized hardware or mobile applications for certain users. The interface integrates dispatch data, mapping, pre-incident planning information, unit tracking, and communication tools into a unified workspace.

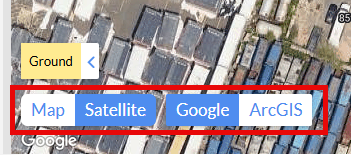

The module supports both Google Maps and ArcGIS mapping platforms, allowing departments to leverage their preferred mapping technology and custom GIS layers. Users can view dispatch details, building stories, pre-plan information, occupancy records, and unit assignments while simultaneously monitoring unit locations and communicating through department chat groups.
Web Responder is particularly valuable for incident commanders, dispatchers, and supervisory personnel who need comprehensive oversight of active incidents and available resources. The interface provides street-level imagery through Google Street View, 3D mapping through Eagle View, turn-by-turn routing, and historical call data to support tactical decision-making.
Common use cases include monitoring active incidents from a command post, conducting virtual size-ups using street view and pre-plan data, coordinating multi-unit responses through chat and unit tracking, reviewing historical call information for repeat locations, and accessing detailed occupancy information during structure fires or hazmat incidents.
Required Permissions
Access to Web Responder features is controlled through role-based permissions. Specific permissions required will vary based on the features being utilized:
Basic Access:

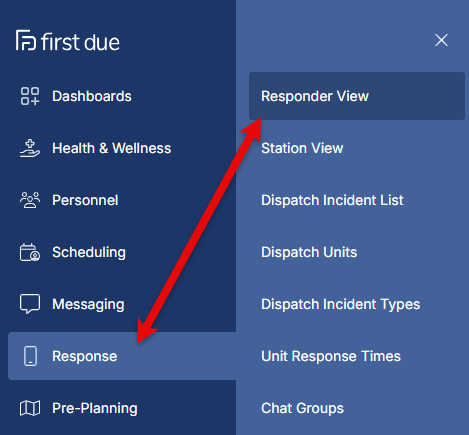

- No Permissions Required to access the Responder View interface
Feature-Specific Permissions (as applicable):

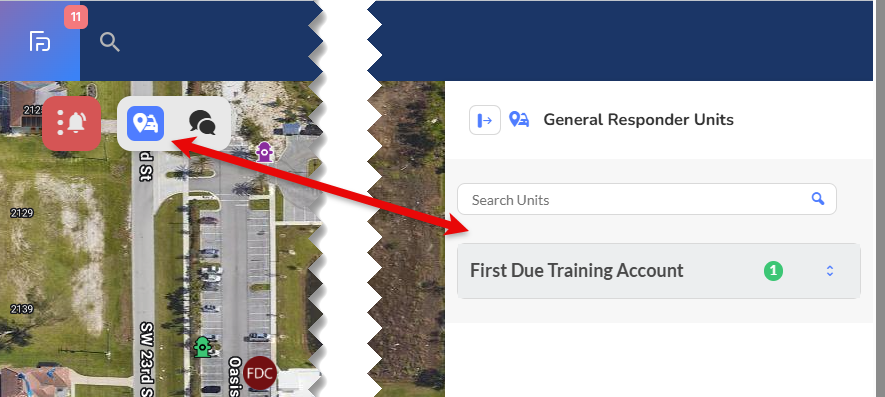

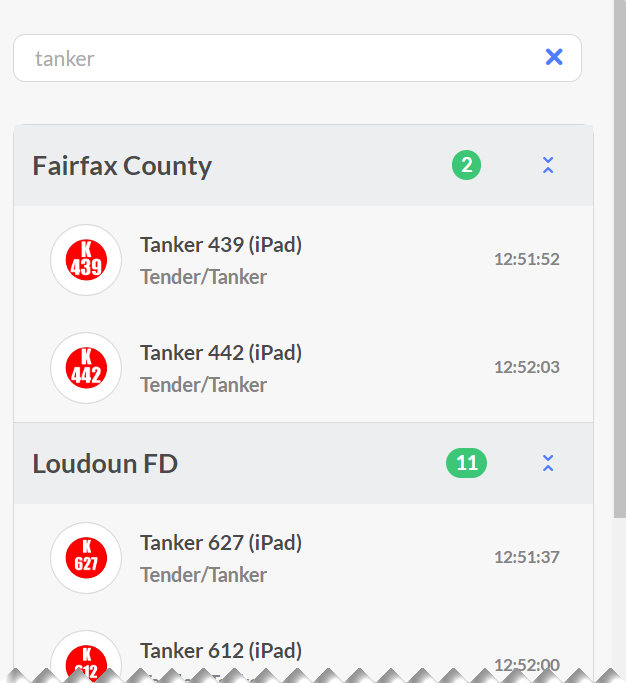

- Responder Map - Show Unit Tracking - Required to view unit tracking on the map

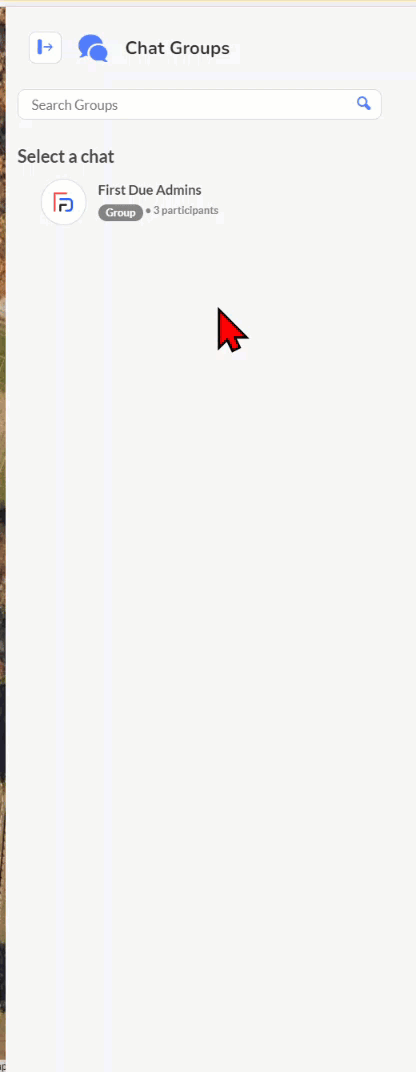

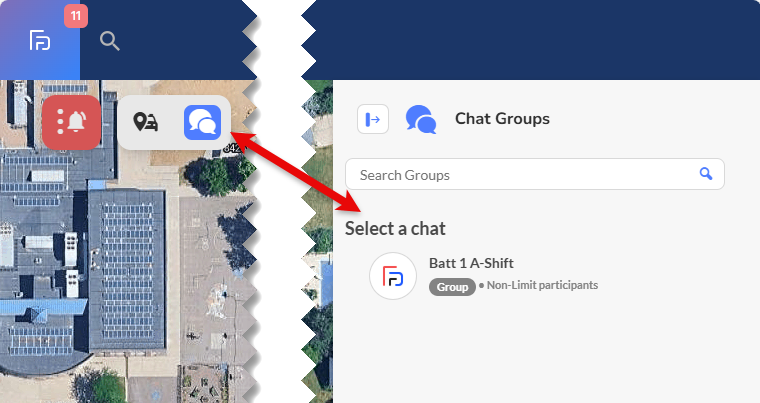

- Chat Groups and Chat Preset Messages - Required to view and participate in department chat groups
- Incident Commands - Required to access the Command button and incident command features (Read, Update, Create & Delete)
- Pre-Plan Edit - Required to access the Edit Pre-Plan function
Important Note:
Available features and buttons in Web Responder depend on your department's configuration and your assigned role permissions. Some features described in this article may not be visible or accessible based on your specific permission set.
Video
Step-by Step Guide

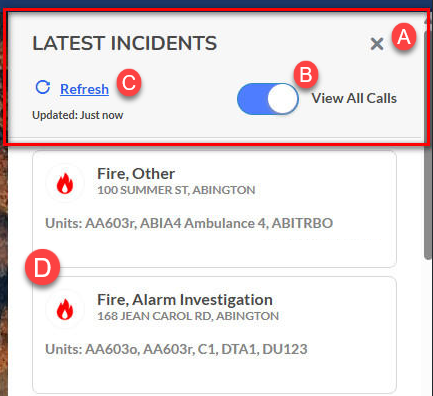

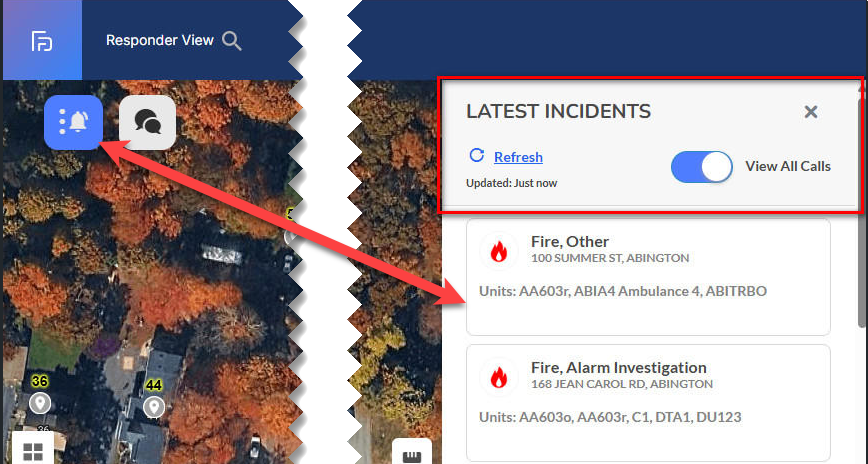

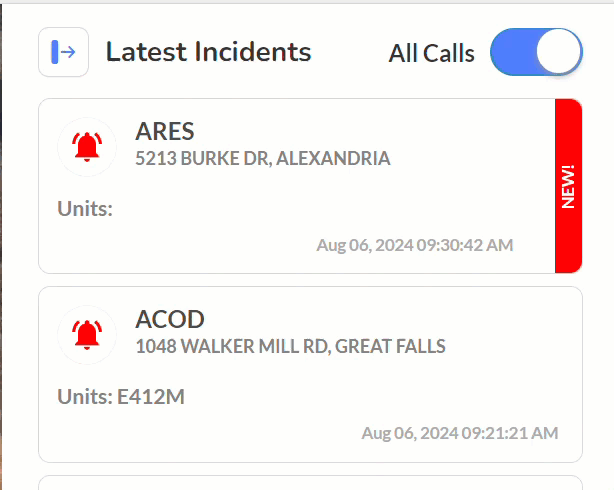

A - Collapse and Close the Incidents List sidebar

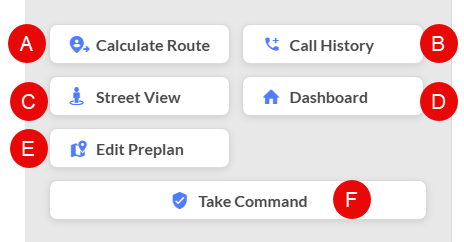

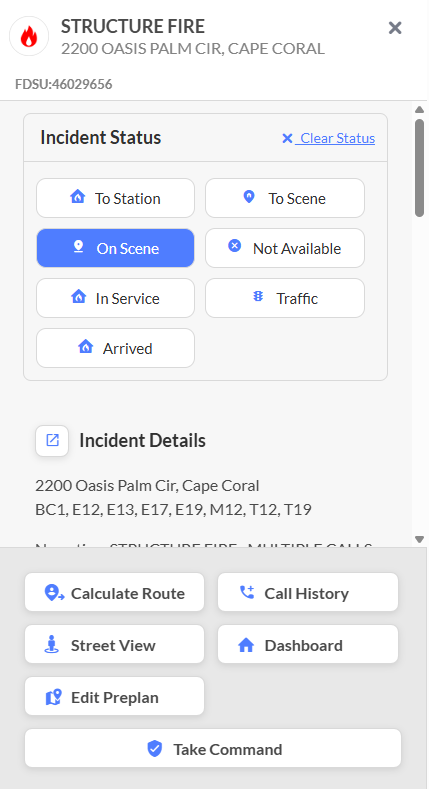

A: Calculate Route: Similar to Calculate Route in Mobile, this brings up a map with a "snapshot" route from Google Maps and text directions on the sidebar.
B: Call History: Opens another window with incident information about this call and previous calls to the dispatched location.
C: Google Street View: Takes the user to the Google street view based on the location of the Green Occupancy icon if available.
E: Edit Preplan: Allows the user to edit the preplan for the dispatched location.
F: Take Command: Opens up the Command Module and allows the user to take command of the incident at that dispatched location.

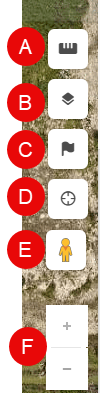

- A - Measurement Tool.

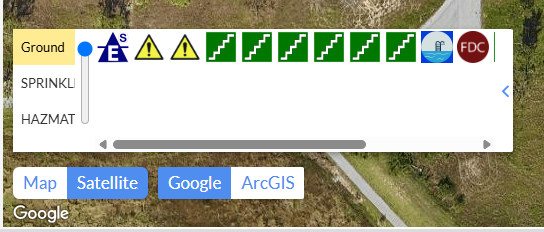

- B- Show/Hide Map Layers.
- C- Toggle Google Points of Interest.
- D - Center to current position.
- E - Google Street View on map.
- F - Map Zoom selectors.
Best Practices
Do's
- Do familiarize yourself with the Web Responder interface during non-emergency times to ensure efficient navigation during actual incidents
- Do use the Dashboard feature to review pre-plan and occupancy information while en route to incidents
- Do leverage Call History to identify patterns at repeat locations or addresses with frequent service calls
- Do utilize the Calculate Route feature for unfamiliar locations, but maintain awareness that it does not provide active rerouting
- Do use Google Street View and Eagle View during pre-incident planning to conduct virtual building surveys and identify access points
- Do toggle off unnecessary map layers during active incidents to reduce visual clutter and improve map clarity
- Do use preset chat messages for time-sensitive communications to reduce typing time during critical operations
- Do regularly check the Status Log to verify that your status updates are being recorded correctly
- Do use the measurement tool for tactical planning such as hose lay calculations or establishing safety zones
Don'ts
- Don't assume that status button updates in Web Responder will automatically interface with your CAD system—these updates only modify times within First Due
- Don't rely solely on the Calculate Route feature for navigation, as it does not track your position or provide dynamic rerouting if you deviate from the planned route
- Don't forget that some features may not be visible based on your role permissions and department configuration—contact your administrator if you need access to specific features
- Don't leave active filters on map layers or units, as this may hide important information during emergency operations
- Don't neglect to explore Full Occupancy Details during structure fires or hazmat incidents, as this information may contain critical safety data
- Don't assume all information in the Building Story field is current—verify critical details through other sources when possible
- Don't forget to expand or enlarge text fields when reviewing detailed information to ensure you're not missing important details
Tips & Recommendations
- Create personal workflows for different incident types (structure fire, EMS, hazmat) that identify which features and information sources to prioritize
- Use the collapse sidebar function when you need maximum map viewing area during complex multi-unit incidents
- Combine unit tracking with chat features to coordinate responding units and maintain situational awareness
- During pre-incident planning, use the combination of Dashboard, Full Occupancy Details, Street View, and Eagle View to develop comprehensive building familiarization
- Establish department protocols for which status buttons should be used and when to update response status
- Train dispatchers and incident commanders to leverage Call History for tactical decision-making at known problem locations
- Use Google Traffic layer when planning response routes during peak traffic hours or known congestion areas
- Bookmark frequently accessed locations or occupancies using your browser's bookmark feature for quick access during emergencies
- Practice using the measurement tool during training exercises to develop proficiency in establishing safety zones and calculating resource needs
Troubleshooting & FAQs
Q: Why can't I see certain features like the Command button or Edit Pre-Plan option?
A: Available features in Web Responder depend on your department's configuration and your assigned role permissions. If you need access to specific features, contact your system administrator to verify that the feature is configured for your department and that your role has the necessary permissions.
Q: I updated my status using the buttons in the incident detail panel, but my CAD system doesn't show the update. Why not?
A: Status button updates in Web Responder only modify times within First Due and do not interface with your CAD system. These updates are recorded in the First Due Status Log but must be separately updated in your CAD system if CAD integration for status updates is not configured.
Q: The Calculate Route feature is not rerouting me when I take a different path. Is this a bug?
A: No, this is expected behavior. The Calculate Route feature provides initial turn-by-turn directions based on your device's current location but does not actively track your position or provide dynamic rerouting if you deviate from the planned route. Use this feature for initial route planning, but rely on your preferred navigation app for active turn-by-turn guidance.
Q: How do I know if the Building Story information is current and accurate?

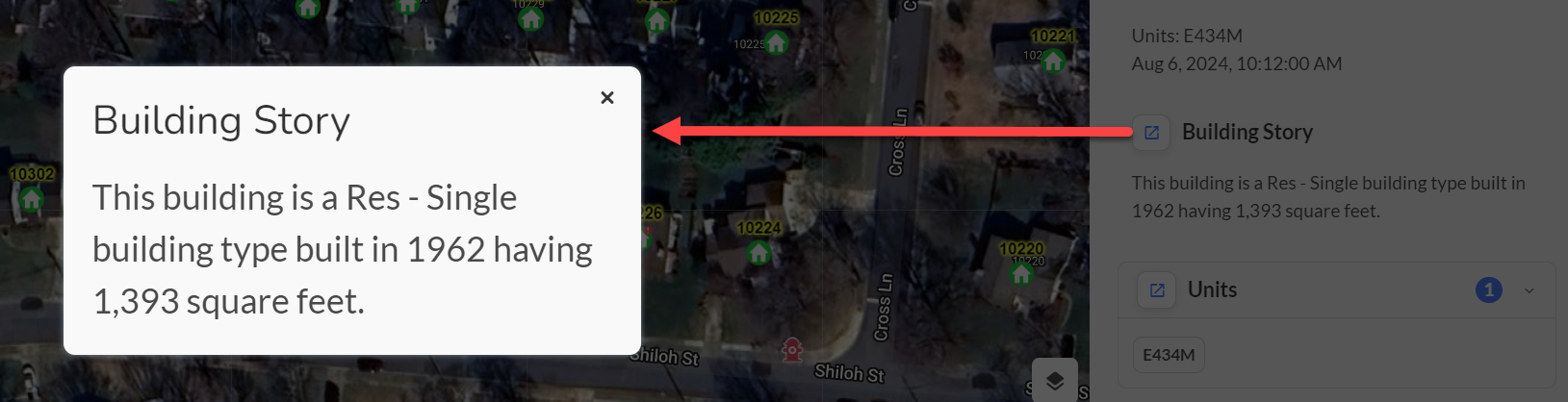

A: The Building Story is a custom compilation of information from the occupancy record based on property use and/or building type. This information is as current as the last update to the occupancy record in First Due. For critical operations, verify important details through additional sources such as pre-plans, Full Occupancy Details, or on-scene size-up.
Q: Can I access Web Responder from any device or browser?
A: Web Responder is browser-based and can be accessed from most modern web browsers on desktop computers, laptops, and tablets. However, some features like unit tracking and location services work best on devices with GPS capabilities. Check with your IT department for specific browser compatibility and supported devices.
Q: What is the difference between the Dashboard and Full Occupancy Details?
A: The Dashboard consolidates pre-plan and occupancy information in a streamlined view designed for quick reference while en route to incidents. Full Occupancy Details provides comprehensive information from multiple data sources including Assessor, Community Connect, Fire Prevention, and Pre-Incident Planning. Use the Dashboard for quick reference and Full Occupancy Details when you need comprehensive property information.
