Purpose

  1. To demonstrate how to create and edit an Inspection Checklist.

Related Articles

Video


Instructions

1. Click on Inspections.


Click on Inspections.



2. Click on Inspection Types.


Click on Inspection Types.



3. To create a new Inspection Type and Checklist, click on Add New Type.


To create a new Inspection Type and Checklist, click on Add New Type.



4. Select "Edit" to edit a checklist for an existing Inspection Type.
  1. An existing checklist can be edited at any time.

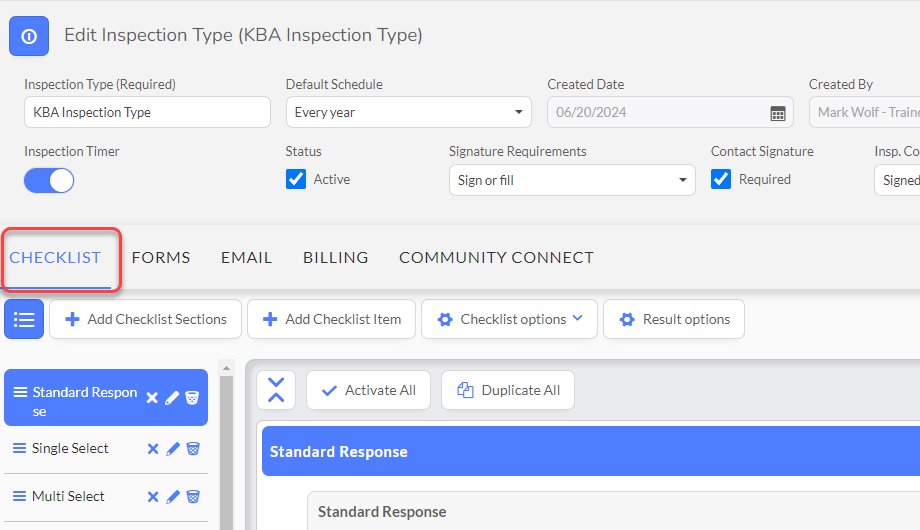

5. Click on Checklist.


Click on Checklist.

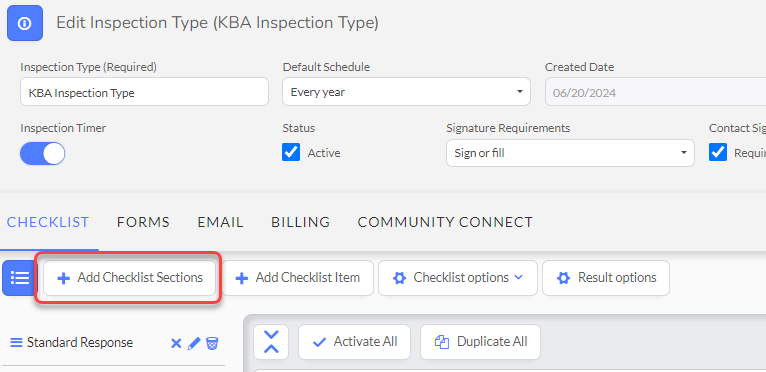

6. Click on Add New Section.


Click on Add New Section.

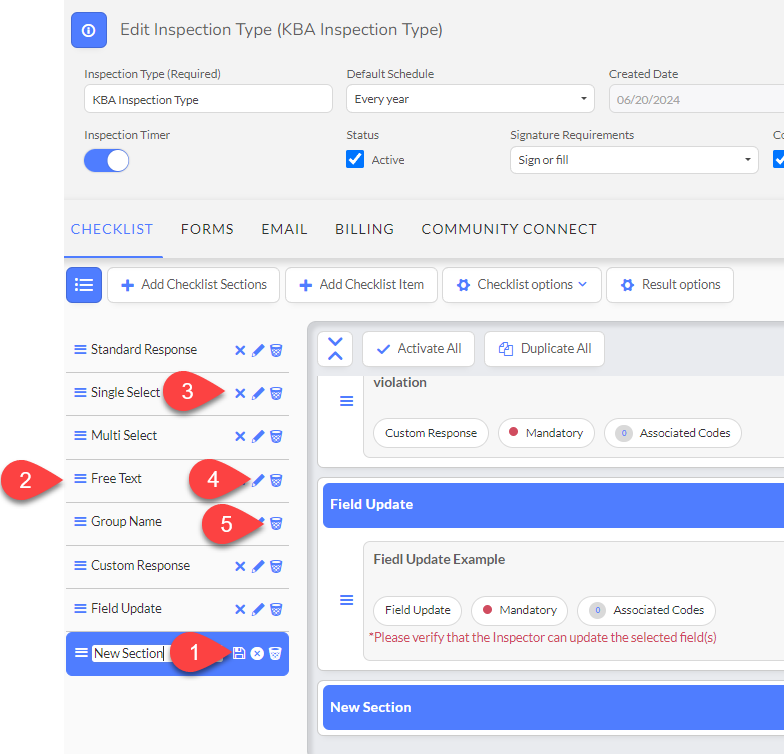

7. Enter names for the sections as needed. This example will use the types of checklist items available and the Group Name feature.
  1. Note that the sections can be saved (#1), moved up or down using drag & drop (#2), deactivated/activated (#3), edited (#4), and deleted (#5).
  2. If a Section is deleted, all Checklist Items in that Section will also be deleted.

Enter names for the sections as needed. This example will use the types of checklist items available and the Group Name feature.



8. The Sections can be expanded or collapsed by selecting:

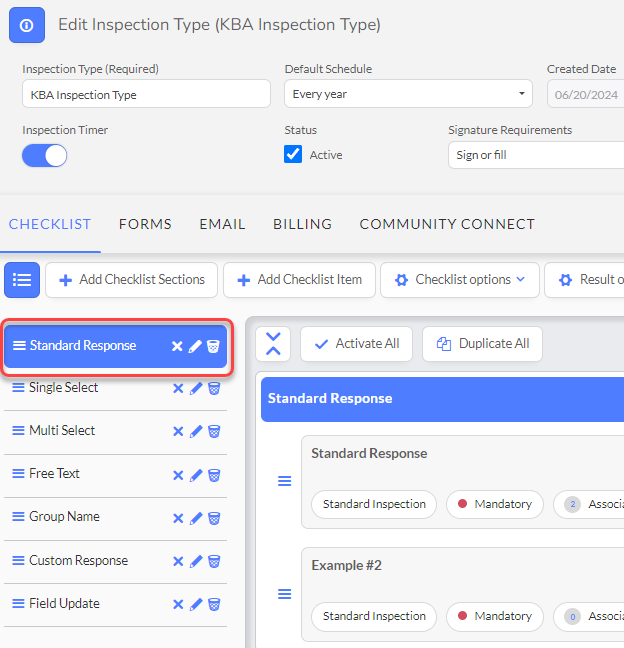

9. To add a Checklist Item (aka Question), select the section it is desired to place the question in.


To add a Checklist Item (aka Question), select the section it is desired to place the question in.

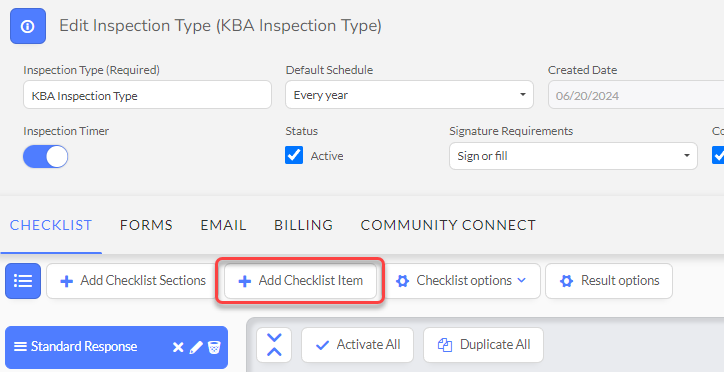

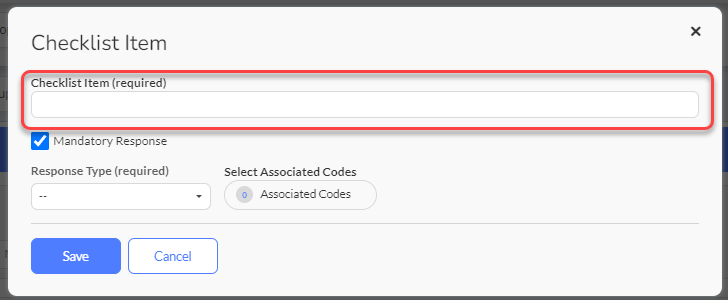

10. Click on Add New Checklist Item and enter the text.
  1. NOTE: The text limit for a Checklist Item is 2500 characters.

Click on Add New Checklist Item and enter the text.

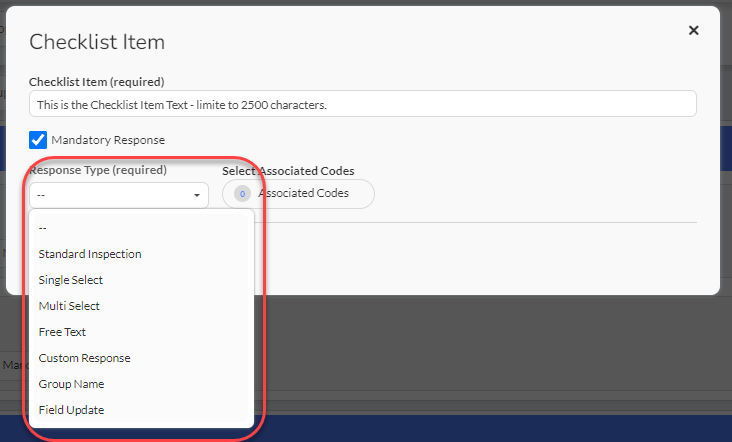

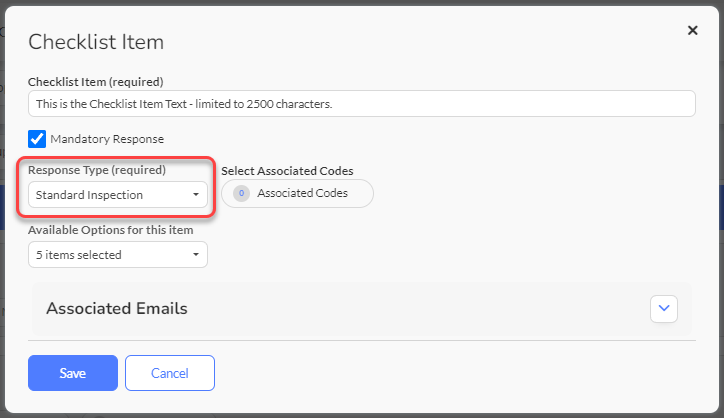

11. Select the Response Type.
  1. Standard Response Type - Creates violation tracking.
  2. Single Select - Allows selecting one answer - does not create violation tracking.
  3. Multi Select - Allows selecting more than one answer - does not create violation tracking.
  4. Free Text - Allows text to be entered - does not create violation tracking.
  5. Custom Response.
  6. Group Name - Allows the creation sub-categories with Checklist Items as needed.
  7. Field Update





12. Standard Response Type Example - Click on Standard Inspection.
  1. NOTE: The Standard Response Type and Custom Response are the only types of checklist item that will trigger violation tracking.

Standard Response Type Example - Click on Standard Inspection.

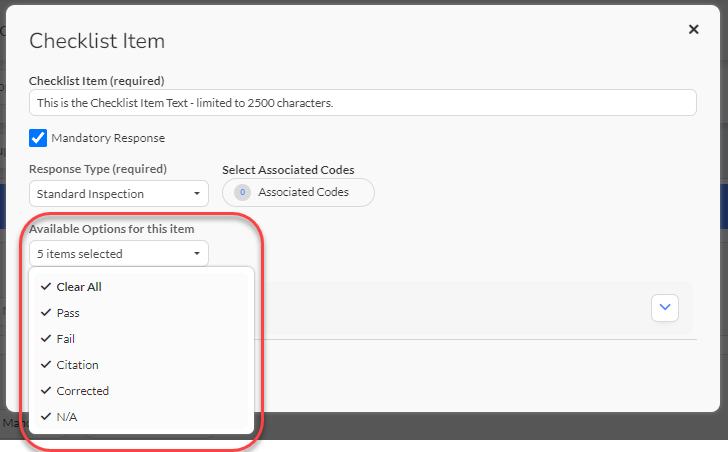

13. Select desired responses for the question.
  1. It is recommended that Pass and Fail be selected at the minimum. Other options needed will depend upon agency policy.

Select desired responses for the question.

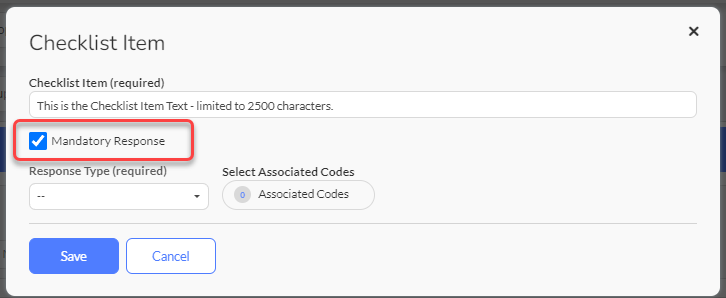

14. Click on Mandatory Response if a response to the Checklist Item is mandatory.
  1. NOTE: This and the following 4 steps are options for all Checklist Items.

Click on Mandatory Response if a response to the Checklist Item is mandatory.

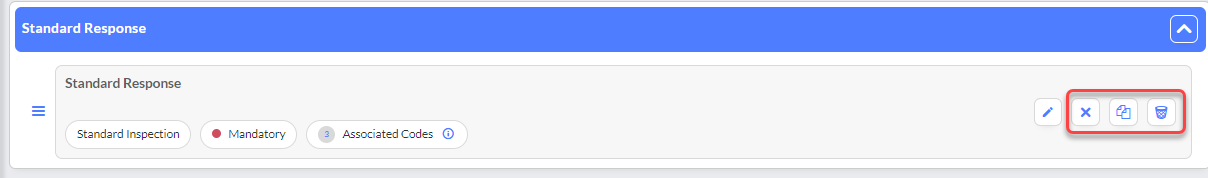

15. Question option - Deactivate/Activate Checklist Item.






16. Question option - Duplicate Checklist Item.


Question option - Duplicate Checklist Item.



17. Question option - Delete Checklist Item.


Question option - Delete Checklist Item.

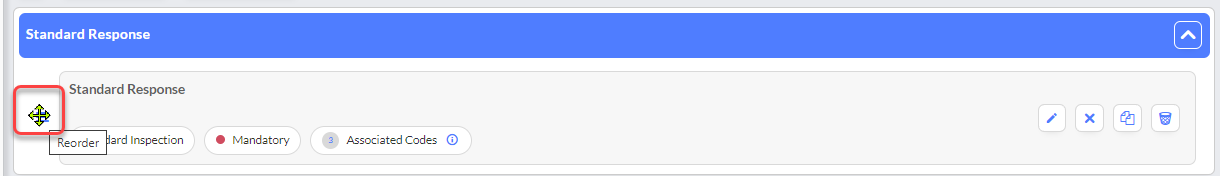

18. Reorder the Checklist Item using drag and drop, if needed.
  1. NOTE: Checklist Items can only be reordered only within the same section of the checklist.

Reorder the Checklist Item using drag and drop, if needed.

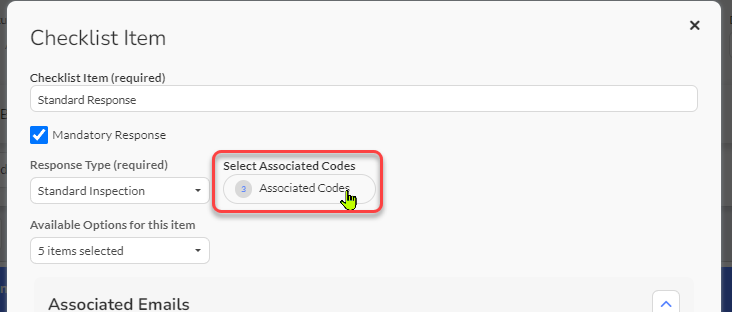

19. To associate a code to the question, select Associated Codes.


To associate a code to the question, select Associated Codes.



20. Select one or more codes to associate with the Checklist Item.
  1. Use advanced search to find the correct code(s).

Select one or more codes to associate with the Checklist Item.

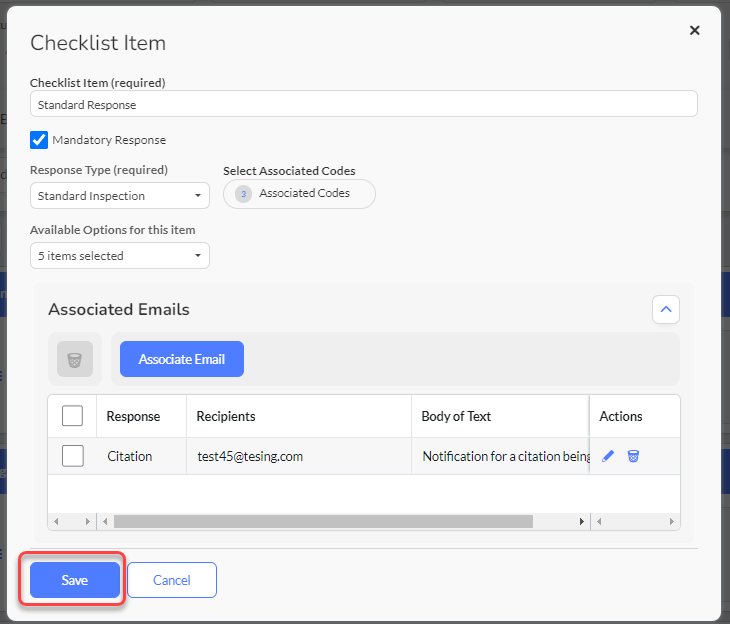

21. After selecting the appropriate code(s), click on Save.


After selecting the appropriate code(s), click on Save.



22. To provide email notification for a violation, Expand Associated Emails.
  1. Works with Standard Inspection Response and Custom Response Response Types only.

To provide email notification for a violation, Expand Associated Emails.

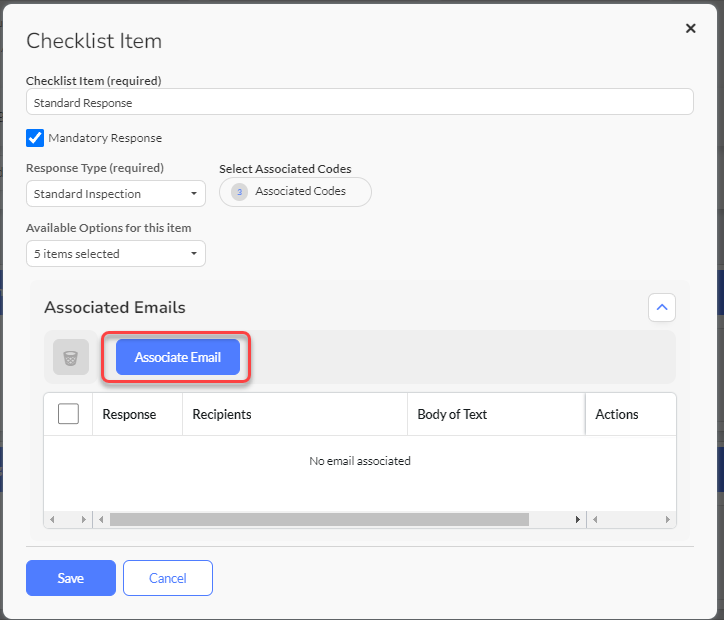

23. Click on Associate Email.
  1. NOTE: Emails can only be associated to the following Response Types:
    1. Standard Inspection
    2. Custom Response


Click on Associate Email.

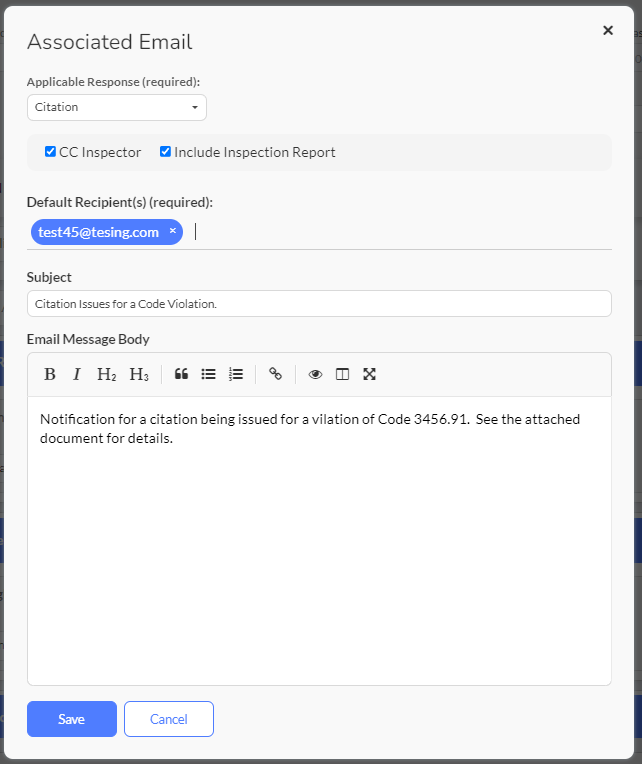

24. Select the appropriate response (#1), CC inspector, if desired (#2), Include Inspection Report, if desired (#3), enter the email address for the recipient (#4), enter a subject (#5), enter text for the email message (#6), format the text, if desired (#7), and then Save (#8).






25. In this example, the recipient will receive an email every time this question has the Fail response selected for an inspection.


In this example, the recipient will receive an email every time this question has the Fail response selected for an inspection.

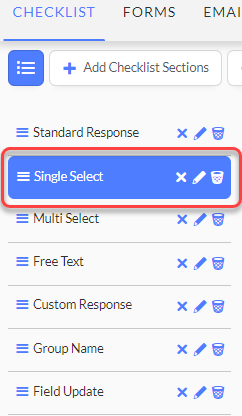

26. Click on Single Select.


Click on Single Select.

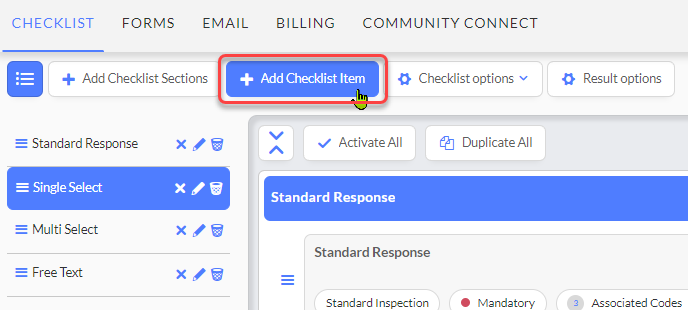

27. Click on Add New Checklist Item.


Click on Add New Checklist Item.



28. This is an example of a Single Select question. Only one response can be selected.
  1. A Single Select Response Type checklist item will not trigger violation tracking.

This is an example of a Single Select question. Only one response can be selected.



29. Enter the text for the response and then select "+" to add any additional responses needed.

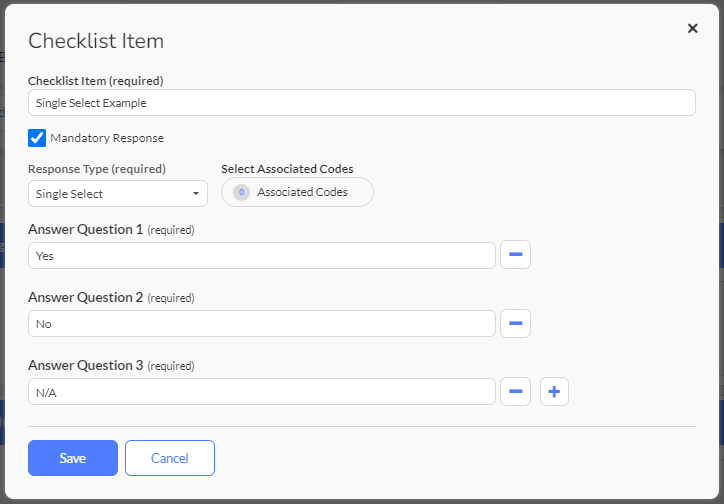

30. Example responses for single select.


Example responses for single select.



31. This is an example of a Multi Select question. More than one response can be selected.
  1. A Multi Select Response Type checklist item will not trigger violation tracking.

This is an example of a Multi Select question. More than one response can be selected.


32. Enter the text for the response and then select "+" to add any additional responses needed.

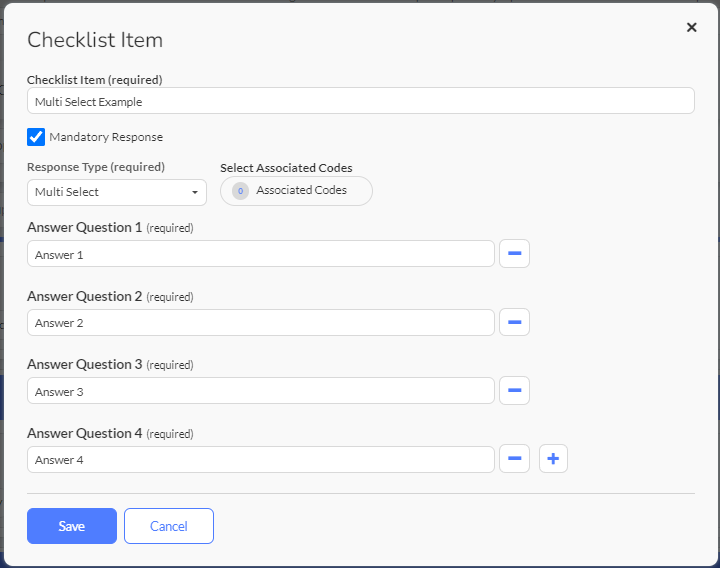

33. Example responses for multi select.


Example responses for multi select.

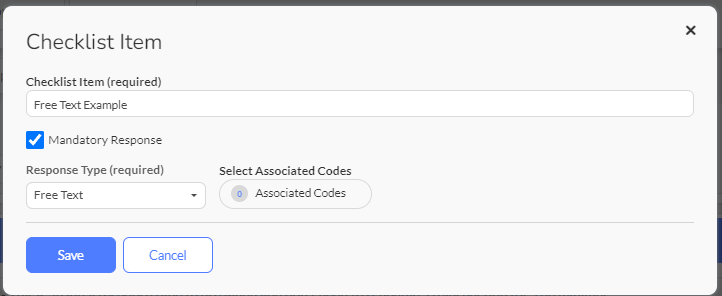

34. This is an example of a Free Text question. A text box will be presented in the checklist that text can be added to.
  1. A Free Text Response Type checklist item will not trigger violation tracking.

This is an example of a Free Text question. A text box will be presented in the checklist that text can be added to.

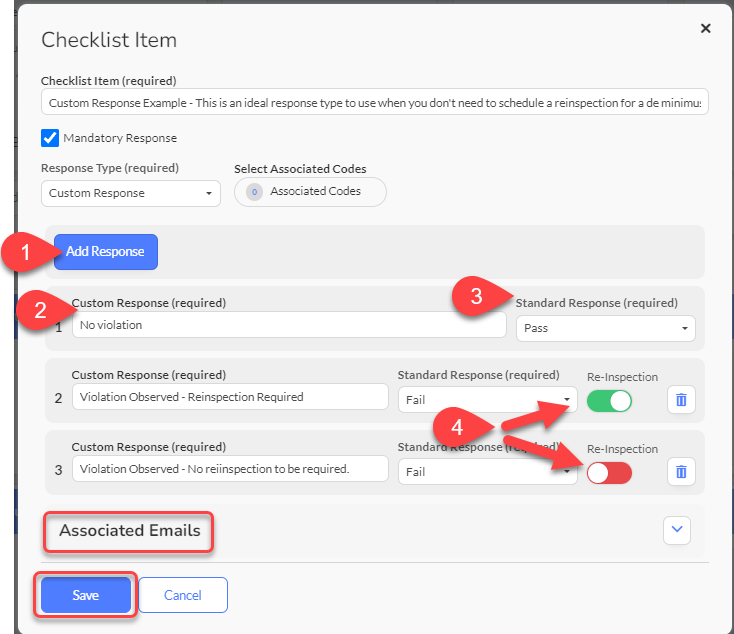

35. Custom Response Example - Click on Add Response (#1).
  1. Enter your response (#2) and link to the correct Standard Response (#3).
  2. Fail and Citation response types can be set to trigger a reinspection (toggled on - green) or to not trigger a reinspection (toggled off - red) (#4).
  3. Repeat the process to add additional responses as needed.
  4. Custom Response creates violation tracking (when a code is associated with the checklist item) even when a reinspection is not triggered (see step #4).
  5. You can associate an email with the Custom Response.

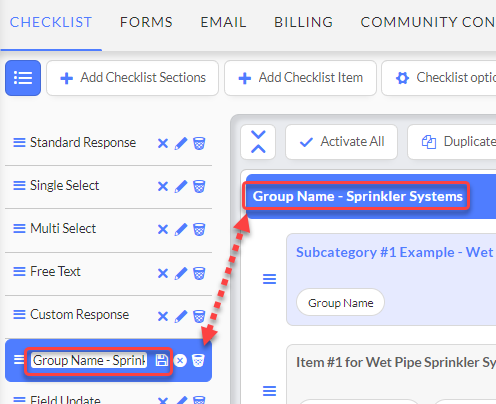

36. Group Example, Step 1. Enter an appropriate Group Name in the Checklist Section and select save.
  1. A Group can be set-up and sub-categories can be set-up in the Checklist Items, see below.

Group Example, Step 1. Enter an appropriate Group Name in the Checklist Section and select save.

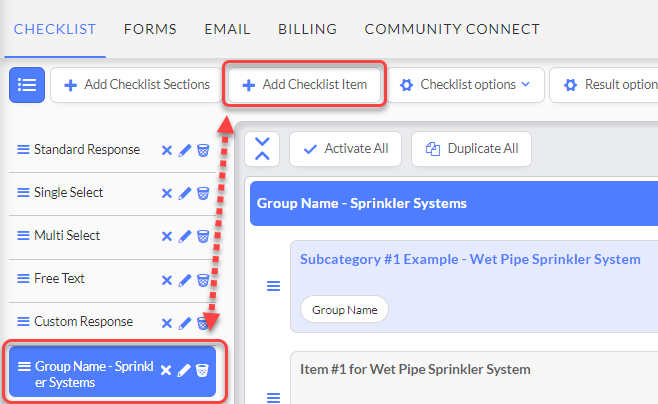

37. Group Example, step 2. Click on Add New Checklist Item.


Group Example, step 2. Click on Add New Checklist Item.



38. Group Example, step 3. Enter an appropriate name for the sub-category.


Group Example, step 3. Enter an appropriate name for the sub-category.



39. Group example, step 4. Select Group Name in the Response Type dropdown.


Group example, step 4. Select Group Name in the Response Type dropdown.



40. Group Example, step 5. Click on Add New Checklist Item.


Group Example, step 5. Click on Add New Checklist Item.

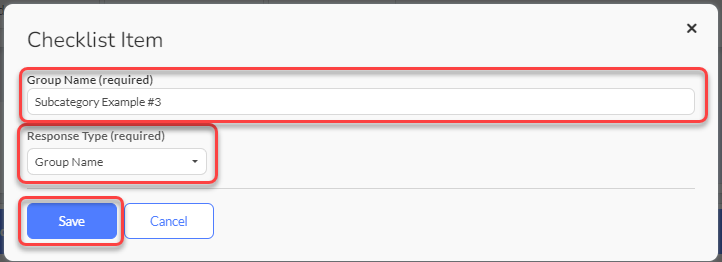

41. Group Example, step 6. Enter an appropriate name for the next sub-category.


Group Example, step 6. Enter an appropriate name for the next sub-category.



42. Group example, step 7. Select Group Name in the Response Type dropdown.


Group example, step 7. Select Group Name in the Response Type dropdown.

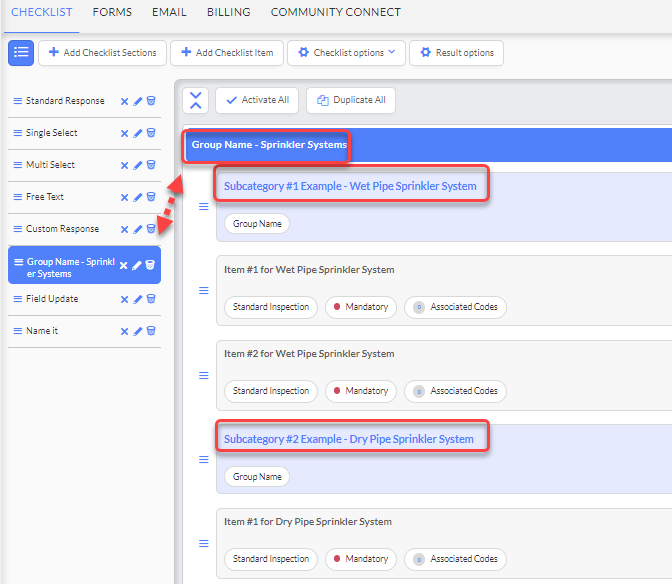

43. Group example with two sub-categories created. Add Checklist items as needed for the Subcategories.


Group example with two sub-categories created. Add Checklist items as needed for the Subcategories.



44. Field Update example:
  1. Allows adding an Occupancy Field to the Checklist for verification and updating.
  2. Select appropriate field after selecting Field Update as the Response Type.
  3. Can add multiple Field Updates to one checklist.





45. Checklist option - Set Check Require All checklist items to be completed.
  1. Will require all Checklist Items to be required.

Checklist option - Set Check Require All checklist items to be completed.



46. Checklist option - Check Allow to add Ad-hoc violations for this checklist.
  1. Will place an Ad Hoc violation section to the Checklist. Great option to add code violations not specifically listed in your Checklist.

Checklist option - Check Allow to add Ad-hoc violations for this checklist.



47. Click on Results options - Bulk Action to add Standard Inspection Checklist Result Options to the entire checklist.


Click on Results options - Bulk Action to add Standard Inspection Checklist Result Options to the entire checklist.



48. Select Standard Inspection Type Responses to add to all Standard Inspection Type items in the entire Checklist and then Save.


Select Standard Inspection Type Responses to add to all Standard Inspection Type items in the entire Checklist and then Save.



49. Activate All - Activates all Checklist Items in the selected section.


Activate All - Activates all Checklist Items in the selected section.



50. Duplicate all - Duplicates all Checklist Items in the selected section.


Duplicate all - Duplicates all Checklist Items in the selected section.



50. Click on Save to save your data.


Click on Save to save your data.



51. Select Close to close the Edit Checklist Window.


Select Close to close the Edit Checklist Window.



52. Prompted to Save - Yes or No.


Prompted to Save - Yes or No.
