EMS Setup - Custom Elements Section

Purpose Statement

  1. This article explains the features and navigation of the Custom Elements section within EMS Setup, enabling users to understand how to manage custom questions, values, and groups for ePCR customization.

Background Information

  1. The Custom Elements section provides agencies with the ability to customize their ePCR forms by adding agency-specific questions, creating custom dropdown values for NEMSIS fields, and organizing elements into logical groups. This functionality allows for tailored data collection while maintaining NEMSIS compliance.
  2. For multi-state agencies, custom elements can be configured separately for each state to accommodate varying local requirements and regulations. The interface provides comprehensive management tools for creating, editing, activating, and removing custom elements as needed.

Required Permissions

To complete this task, users need the following First Due permissions:

EMS Setup - Manage

  • Allow

EMS Setup - Manage Field Customization

  • Allow

These permissions ensure users can access the Custom Elements section and perform all necessary customization functions.

Video

Step-by-Step Guide

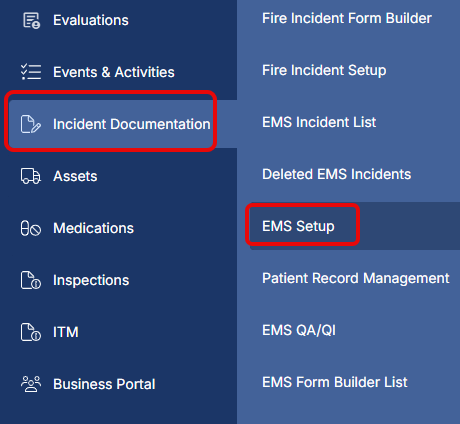

Step 1: Navigate to EMS Setup
  1. Navigate to Incident Documentation then select EMS Setup

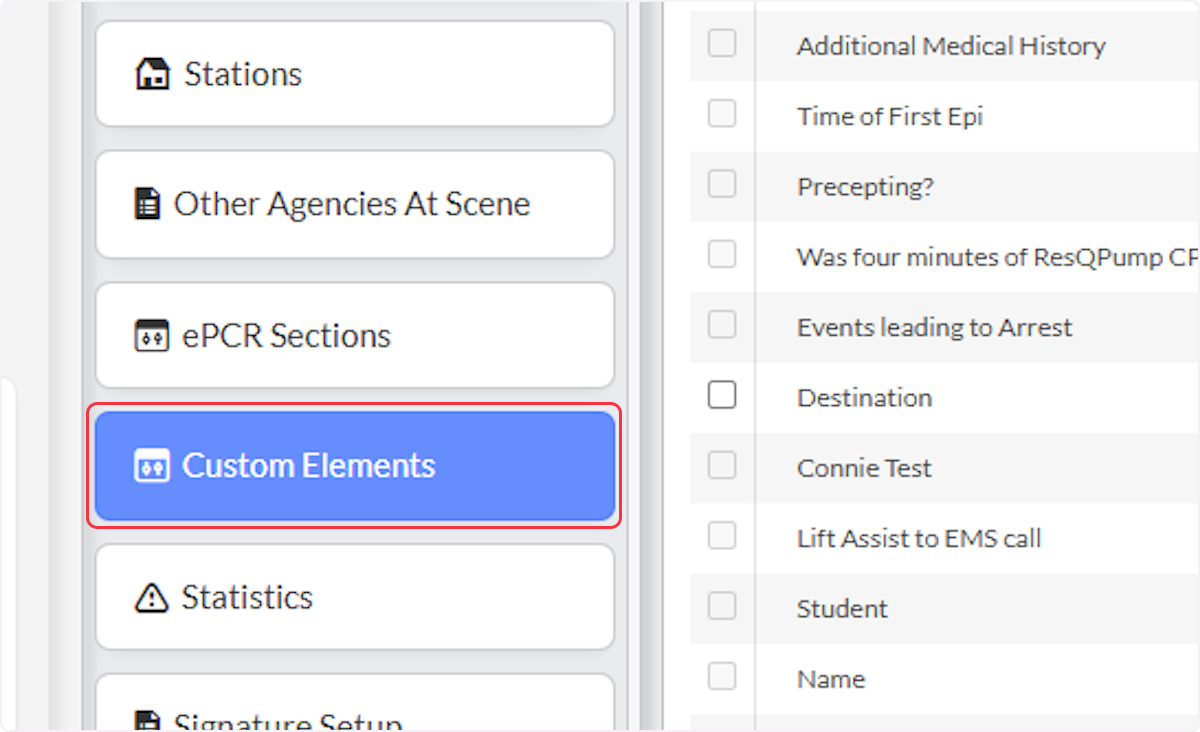

Step 2: Access Custom Elements Section
  1. Locate and select the Custom Elements section within the EMS Setup

Locate and select on the Custom Elements section within the EMS Setup.

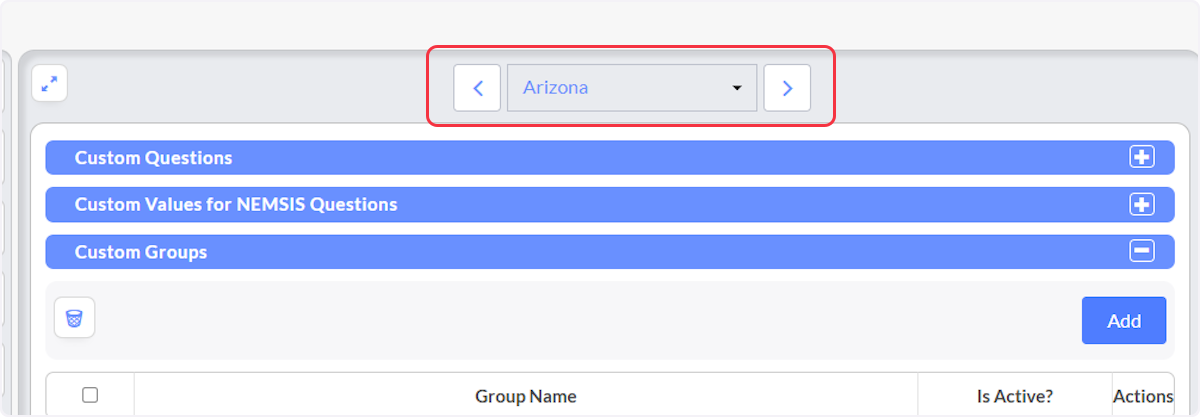

Step 3: Select State (for multi-state agencies)
  1. If your agency is affiliated with multiple states, you can create custom questions, values, or groups for the selected state
  2. Use the arrows or dropdown to choose which state to begin adding custom questions, values, or groups
If your agency is affiliated with multiple states you are able to create custom questions, values or groups for the selected state.

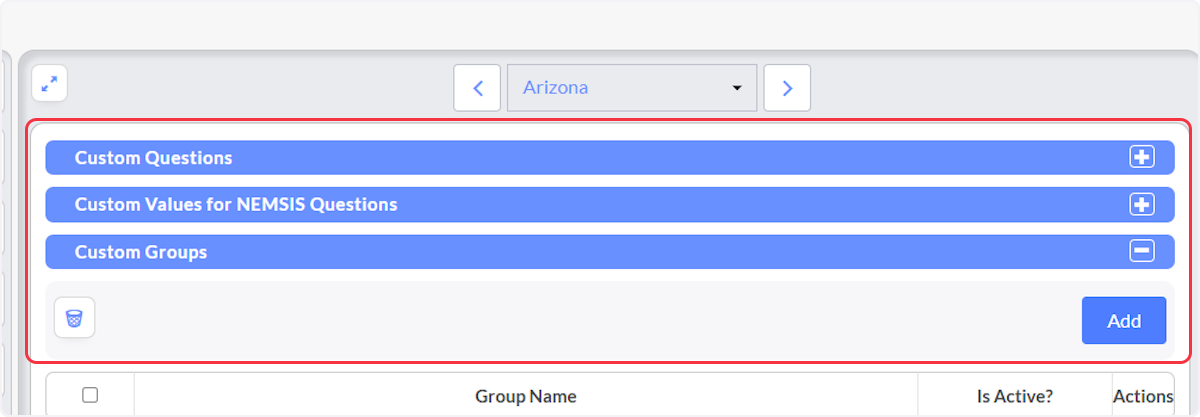

Step 4: Understanding Subsection Management
  1. Within each subsection you will be able to add, edit, remove, or mark elements as active

Within each sub-section you will be able to add, edit, remove or mark active.

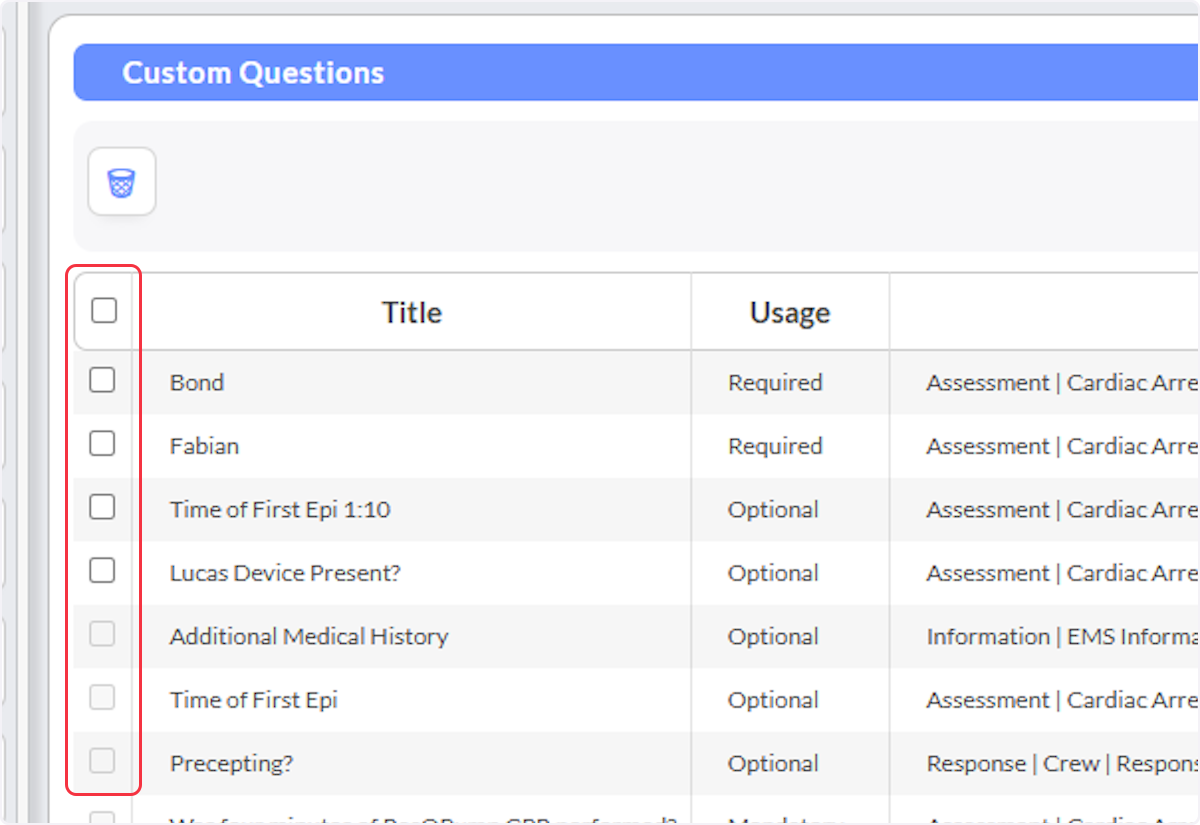

Step 5: Bulk Delete Operations
  1. To bulk delete any Custom areas, use the checkbox to select individual items
  2. Use the top checkbox to select all displayed items
  3. Select the waste basket icon to bulk delete selected items
ℹ️

Info:

 You cannot select or delete any custom areas that have information associated with them from existing ePCRs

To bulk delete any Custom areas, use the check box to select or using the top will select all displayed, select on the waste basket to bulk delete.

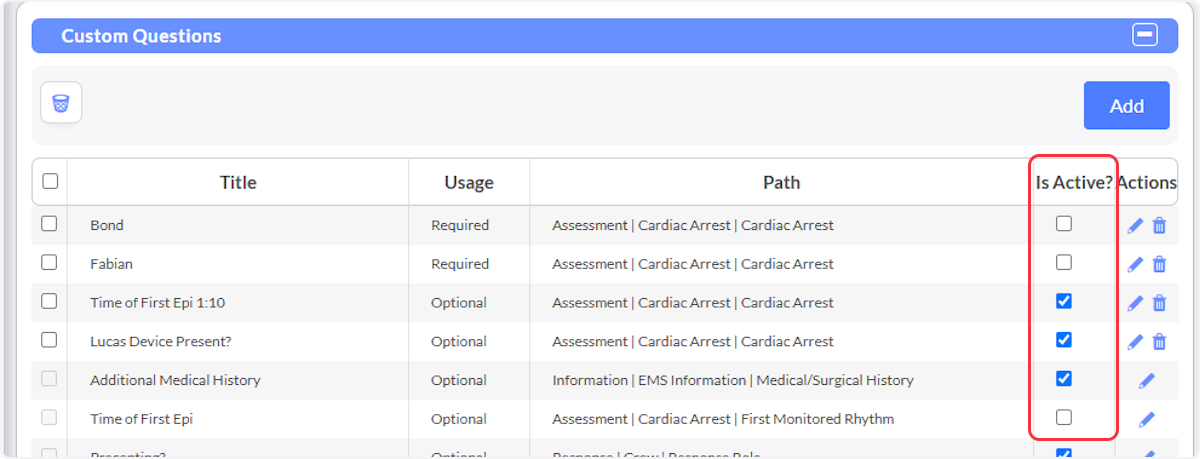

Step 6: Managing Active Status
  1. From the Is Active column, you can select which custom question, value, or group will be active in an ePCR
  2. Only active elements will appear in the ePCR form for providers to use

From the Is Active column you are able to select which custom question, value or group will be active in an ePCR.

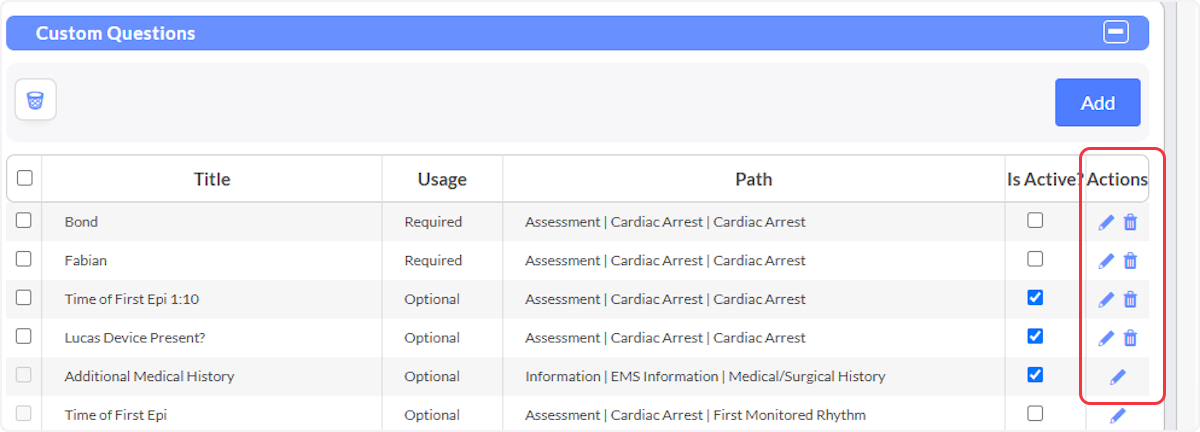

Step 7: Using the Actions Column
  1. From the Actions column you can edit any existing custom question, value, or group
  2. Available actions:
    1. Pencil icon - to edit the element
    2. Trashcan icon - to delete the element
ℹ️

Info:

You cannot delete any custom question, value, or group if there is information associated with it from an ePCR


From the Actions column you are able to edit any existing custom question, value or group.
Step 8: Adding New Custom Elements
  1. To begin adding Custom Questions, Values, or Groups, select Add in the appropriate subsection
  2. Each subsection has its own Add button for creating new elements
To begin adding Custom Questions, Values or Groups select the Add in the appropriated subsection.

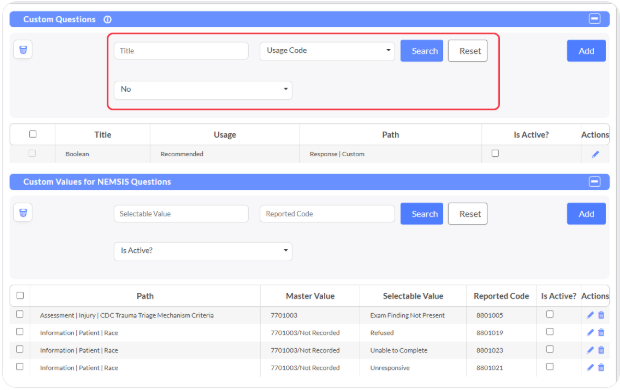

Step 9: Use Filtering Options
  1. Filter the list using the fields within each section
  2. Enter filter criteria and select Search to narrow displayed results


Best Practices

  1. Plan your custom elements structure before implementation to avoid unnecessary changes later
  2. Use descriptive names for custom elements to make them easily identifiable
  3. Test custom elements in a development environment before activating in production
  4. Regularly review active status of custom elements to ensure only necessary items are displayed
  5. Coordinate with clinical staff when creating custom questions to ensure relevance and accuracy
  6. Document the purpose and usage of each custom element for future reference
  7. Consider grouping related custom elements for better organization
  8. Review and clean up unused custom elements periodically

Troubleshooting & FAQs

Why can't I delete a custom element?
  • Custom elements cannot be deleted if they have associated data from existing ePCRs. You can deactivate them instead.

How do I know which state I'm configuring for?
  • Check the state selector dropdown at the top of the Custom Elements section to verify which state is currently selected.

What's the difference between inactive and deleted elements?
  • Inactive elements are hidden from the ePCR but retain their data and can be reactivated. Deleted elements are permanently removed (only if no data exists).

Can I copy custom elements from one state to another?
  • Each state's custom elements must be configured separately. You'll need to manually recreate elements for each state.

How do I bulk activate or deactivate elements?
  • Use the checkboxes to select multiple elements, but activation/deactivation must be done individually through the Is Active column.

What happens to data if I deactivate a custom element?
  • Existing data remains intact, but the element won't appear in new ePCRs. The data can still be viewed in historical reports.
